DAYTON

1/2 HP Automatic Submersible Sewage Pump, 115 Voltage, 85 GPM of Water @ 15 Ft. of Head

Hover over image to magnify

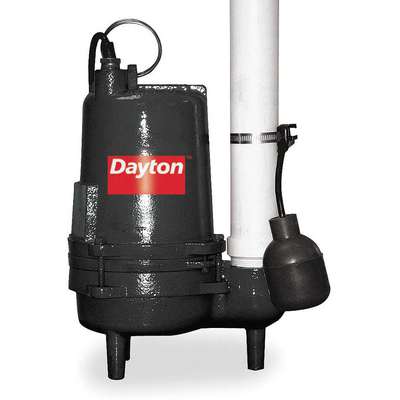

Submersible Sewage Pump,1/2 Hp
PI_Asset_948171
PI_Asset_948172
Submersible Sewage Pump,1/2 Hp
PI_Asset_948171
PI_Asset_948172

#917322-7 | Pkg Qty: 1

$913.53 pkg | $913.53 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps
12 A
Maximum Liquid Temperature
104°F
Base Material
303 Stainless Steel
Maximum Temperature (Deg. F)
104
Brand
DAYTON
Mfr. Part Number
3BB88
Cord Length
20 ft.
Motor RPM
1750
Diameter
10-3/4 in.
Package Quantity
1
Discharge NPT
2 in.
Phase
1
GPM of Water @ 10 Ft. of Head
111
Pump Body Material
Cast Iron
GPM of Water @ 15 Ft. of Head
85
Pump HP
1/2
GPM of Water @ 20 Ft. of Head
43
Pump Type
Automatic
GPM of Water @ 5 Ft. of Head
140
RPM
1750
Height
15-3/16 in.
Shaft Material
SiC
Horsepower
1/2
Shaft Seal
Silicon Carbide
Housing
Cast Iron
Shaft Seal Material
Carbon Ceramic
Housing Material
Cast Iron
Shipping Weight
56.95 lb.
Impeller Material
Cast Iron
Switch Type
Tether
Input Phase AC
1
Top Material
Cast Iron
Item
Submersible Sewage Pump
Type
Automatic
Maximum Diameter Solids
2 in.
Voltage
120 VAC
Maximum Head
25 ft.
General
Body Dia.
10 3/4 in
Nominal Voltage
110V AC
Discharge Dia.
2 in
Phase - Pumps
1
Discharge Standard
NPT
Rated Voltage
120V AC
Flow Rate @ 10 Ft. of Head
111 gpm
Shaft Seal Material - Pumps
Carbon Ceramic
Flow Rate @ 15 Ft. of Head
85 gpm
Switch Actuation
Tether Float
Flow Rate @ 20 Ft. of Head
43 gpm
Switch Electrical Connection
Piggyback

Product Description

These general purpose 110 to 120V sewage ejector pumps remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
