JET

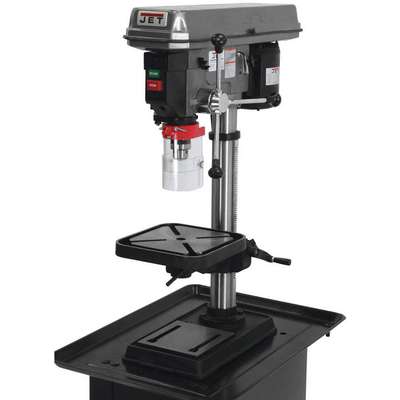

Jet 3/4 Motor HP Bench Drill Press, Belt Drive Type, 15" Swing, 115/230 Voltage
Hover over image to magnify
#917312-8 | Pkg Qty: 1
$977.72 pkg | $977.72 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Drilling
Mfr. Part Number
354401
Base Length
18 in.
Package Quantity
1
Base Width
10-1/2 in.
Phase
Single
Brand
JET
Primary Material Application
Metal
Chuck Size
5/8 in.
Shipping Weight
156 lb.
Chuck Type
Keyed
Speed Control
Fixed
Current Rating
9/4.5 A
Swing
15 in.
Drive Type
Belt
Table Shape
Square
Horsepower
3/4 HP
Voltage
115/230V AC
Item
Bench Drill Press
General
Chuck Style
Keyed
Maximum Spindle-to-Table Height
15 in
Column Diameter
2 7/8 in
Minimum Spindle Speed
200 RPM
Current
9/4.5 A
Nominal Voltage
115/230V AC
Downfeed Type
Manual
Quill Diameter
1 7/8 in
Drill Press Application
Drilling
Speed Adjustment
Step Pulley
Drill Press Type
Benchtop
Speed Range
200 to 3,630 RPM
Drilling Capacity in Cast Iron
5/8 in
Spindle Speed Range
200 RPM - 3,630 RPM
Drilling Capacity in Stainless Steel
1/2 in
Spindle Travel
3 3/8 in
Drilling Capacity in Steel
1/2 in
Spindle-to-Column Distance
7 1/2 in
Drilling Capacity in Wood
5/8 in
Table Length
11 1/2 in
Guard Included
Yes
Table Slot
Yes
Includes
Chuck with Key
Table Tilt
45 Degrees
Maximum Overall Height
39 1/2 in
Table Width
11 1/2 in
Maximum Spindle Speed
3,630 RPM
Tilting Angle
45 Degrees
Maximum Spindle-to-Base Height
24 in
Product Description
Drill Presses
- Medium-Duty
- Feature cast-iron head and adjustable depth stop. For maintenance shops and industrial applications. Part Number: 2LKU8 Precision Micro Drill is for instrument, electronic, jewelry, and research applications. DAKE models feature locking handle hub, quick belt tension release, and CE safety electrical package. JET models feature 45° table tilt and hinged metal belt and pulley cover. Baileigh model features digital RPM readout, auto-reverse tapping feature, safety guard with limit switch, and integrated coolant system.
