TRILOGY BY ALARM LOCK

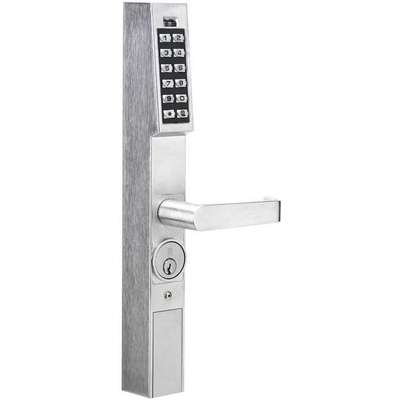

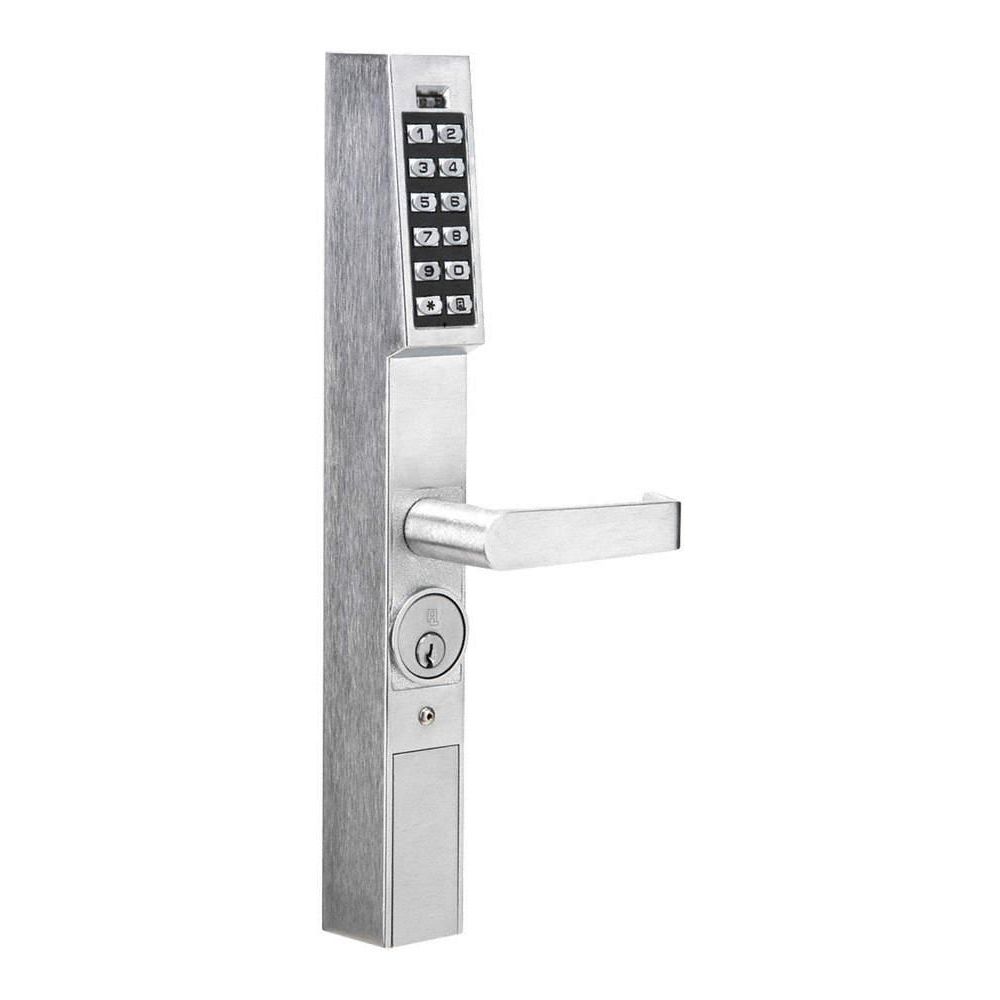

Electronic Keyless Exit Trim Lock Narrow Stile, Entry with Key Override, Satin Chrome, Series DL1200
Hover over image to magnify
#917287-4 | Pkg Qty: 1
$750.78 pkg | $750.78 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Backset
1-1/2 in.
Mounting Style
Cylindrical
Battery Life
100,000 Cycles
Number of Keys
0
Brand
TRILOGY BY ALARM LOCK
Operating Temperature Range
-31 deg. F to 151 deg. F
Door Plate Thickness
1-3/4 in.
Outside Depth
1-5/8 in.
Finish
Satin Chrome
Outside Height
14-3/8 in.
Function
Entry with Key Override
Outside Width
1-3/4 in.
Hand
Nonhanded
Package Quantity
1
Handle Type
Lever
Power Source
(2) Batteries
Item
Electronic Keyless Exit Trim Lock Narrow Stile
Series
DL1200
Ligature Resistant
No
Shipping Weight
6.75 lb.
Lock Style
Zinc
Weather Resistant
Yes
Mfr. Part Number
DL1200/26D1
General
Access Method
Proximity and Keypad
Key Override Options
Standard SC1 Keyway
Backset Size (In.)
1-1/2
Keypad
12 Button
Depth (In.)
1-5/8
Lock Material
Zinc
Door Thickness
1-3/4 in
Max. User Codes
100
Door Thickness (In.)
1.75
Operating Temp. Range
-31° to 151°F
Electrical/Mechanical
Electrical
Outside Height (In.)
14-3/8
For Use With
Narrow Stile Deadlatch System
Timed Entry Allowance
3 to 15 sec
Height (In.)
14-3/8
Timed Entry Allowance (Sec.)
3 to 15
Includes
Cylinder And Batteries
Width (In.)
1-3/4
Product Description
ALARM LOCK Trilogy® keyless electronic control lock easily replaces keyed lock. For narrow-stile glass doors, compatible with Adams Rite® deadlatch locks. Supports 100 users, fingertip/keypad programmable. All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes and multilevel users.
Expertly Selected Product Pairings
Item Barcode
Electronic Lock,Satin Chrome,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1YND2 | Electronic Lock,Satin |
 | UNSPSC CODES | 31162808 | |
 | VMRS (ATA) CODES | 053-006-009 | Electronic Lock,Satin |
