TE-CO

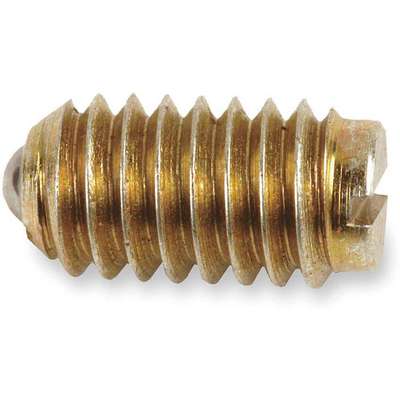

Spring Plunger, Thread Size 1/4"-20, Thread Length 17/32", Plunger Projection 0.0350"
#917283-3 | Pkg Qty: 5
$39.70 pkg | $7.94 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Material
440 Stainless Steel
Mfr. Part Number
52910
Body Finish
Gold
Mounting Type
Threaded
Body Length
17/32 in.
Overall Length
17/32 in.
Body Material
Stainless Steel
Package Quantity
5
Brand
TE-CO
Product Type
Spring Plunger
Finish
303 Stainless Steel
Shipping Weight
.03 lb.
Force
4.00 Initial, 12.00 Final
Spring Material
302/304 Stainless
Function
Smallest And Lightest Spring Loaded Device, Side Tolerant, Controlled End Forces
Thread
Fully Threaded
Handle Type
Slotted Drive
Thread Length
17/32 in.
Item
Spring Plunger
Thread Size
1/4"-20
Locking
Yes
Type
With Locking Element
Material
303 Stainless Steel
General
Application
Controlled End Force, Side Tolerant, Smallest and Lightest Spring-Loaded Device
Plunger Dia.
1/8 in
Body Dia.
1/4 in
Plunger Material
Stainless Steel
Final Nose Force
12 lb
Plunger Projection
0.0350 in
Initial Nose Force
4 lb
Thread-Locking Element Included
Yes
Nose Shape
Ball
Product Description
Ball Plungers
- Sold in pack of 5
- Smallest and lightest spring-loaded devices with controlled end forces. Offer a short travel range and high strength in side-load applications. Ball material for steel plungers is 404 stainless steel; for stainless steel plungers, ball is 440 stainless steel. Use zinc plated for light end forces, and black oxide for standard end forces.
Item Barcode
Plunger,Ball,SS,1/4-20,17/32,
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 2YKZ6 | Plunger,Ball, SS,1/4-20,17/ | |
UNSPSC CODES | 31161721 | ||
VMRS (ATA) CODES | 053-006-009 | Plunger,Ball, SS,1/4-20,17/ |
