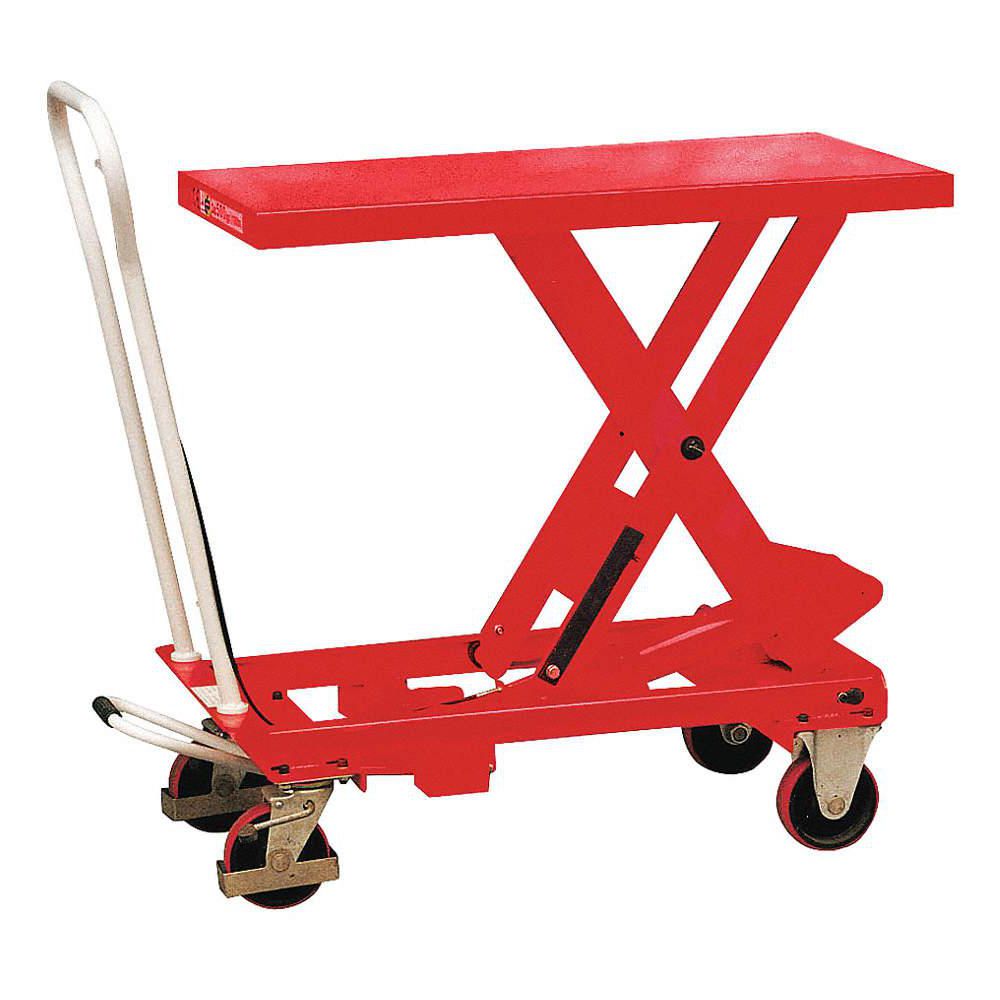

Mobile Manual Lift, Manual Push Scissor Lift Table, 550 lb. Load Capacity, Lifting Height Max. 36

Hover over image to magnify
Scissor Lift Cart,550 Lb.,
Scissor Lift Cart,550 Lb.,

#917251-6 | Pkg Qty: 1

$1,503.74 pkg | $1,503.74 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Maximum Lifting Height
36 in.
Caster Diameter
5 in.
Mfr. Part Number
33W288
Caster Material
Polyurethane
Minimum Lifting Height
13 in.
Caster Type
(2) Rigid, (2) Swivel with Brake
Mobile/Stationary
Mobile
Caster Wheel Diameter
5 in.
Overall Height
36 in.
Caster Wheel Type
(2) Rigid, (2) Swivel with Brake
Overall Length
42 in.
Frame Material
Steel
Overall Width
19-1/2 in.
Item
Scissor Lift Table
Package Quantity
1
Lift Control
Foot Pump
Phase
1
Lift Mechanism
Hydraulic
Platform Length
32-1/2 in.
Lift Mobility
Manual Lift, Manual Push
Platform Style
Fixed
Lift Table Item
Scissor Lift Table
Platform Width
19-1/2 in.
Lift Table Platform Style
Fixed
Powered By
Manual
Lifting Height Maximum
36 in.
Raised Height
36 in.
Lifting Height Minimum
13 in.
Shipping Weight
194 lb.
Load Capacity
550 lb.
Type
Manual
Lowered Height
13 in.
General
Brake Type
Side Thumbscrew Brake
Lifting Height per Pump
1/8 in
Caster Dia.
5 in
Overall LxWxH
42 in x 19 1/2 in x 36 in
Caster Wheel Dia.
5 in
Platform Gauge
10 ga
Elevation per Stroke
1"
Platform LxW
32 1/2 in x 19 1/2 in
Foot Pump
Single Speed
Platform Type
Solid
Includes
Hydraulic Foot Pump
Scissor Type
Single
Lifting Height Max.
36 in
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Lifting Height Min.
13 in
Wheel/Tread Material
Polyurethane

Product Description

These manual mobile lift tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far when moving them onto or off of it. The tables' hydraulic lifting mechanism is controlled with a foot pump.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Dayton Mobile Scissor Table Lift OIPM
