BAILEIGH INDUSTRIAL

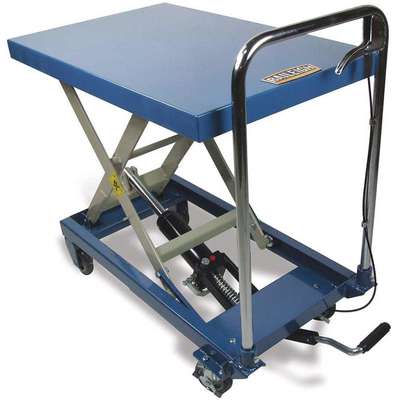

Mobile Manual Lift, Manual Push Scissor Lift Table, 660 lb. Load Capacity, Lifting Height Max. 30-1/

Hover over image to magnify
Scissor Lift Cart,10-13/64In H,
Scissor Lift Cart,10-13/64In H,

#917244-5 | Pkg Qty: 1

$939.10 pkg | $939.10 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
BAILEIGH INDUSTRIAL
Maximum Lifting Height
30-1/2 in.
Caster Diameter
(2) 6 in., (1) 3 in.
Mfr. Part Number
B-CART
Caster Wheel Diameter
(2) 6 in., (1) 3 in.
Minimum Lifting Height
10-13/64 in.
Frame Material
Steel
Mobile/Stationary
Mobile
Item
Scissor Lift Table
Overall Height
10-13/64 in.
Lift Control
Foot Pump
Overall Length
35-1/2 in.
Lift Mechanism
Hydraulic
Overall Width
20-1/2 in.
Lift Mobility
Manual Lift, Manual Push
Package Quantity
1
Lift Table Item
Scissor Lift Table
Platform Length
32-1/4 in.
Lift Table Platform Style
Fixed
Platform Style
Roller
Lifting Height Maximum
30-1/2 in.
Platform Width
20-1/2 in.
Lifting Height Minimum
10-13/64 in.
Powered By
Foot Pump
Load Capacity
660 lb.
Raised Height
30-1/2 in.
Lowered Height
10-13/64 in.
Shipping Weight
145 lb.
General
Brake Type
Side Pedal Brake
Overall LxWxH
32 1/2 in x 20 1/2 in x 10 1/2 in
Caster Dia.
(2) 6 in, (1) 3 in
Platform Gauge
11 ga
Caster Wheel Dia.
3 in, 6 in
Platform LxW
32 in x 20 in
Elevation per Stroke
29/64"
Platform Type
Solid
Lifting Height Max.
30 1/2 in
Scissor Type
Single
Lifting Height Min.
10 13/64 in
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Lifting Height per Pump
19/32 in
Wheel/Tread Material
Rubber

Product Description

These manual mobile lift tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far when moving them onto or off of it. The tables' hydraulic lifting mechanism is controlled with a foot pump.
