TELEMECANIQUE SENSORS

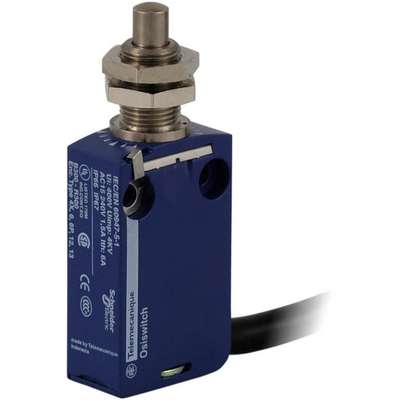

Telemecanique Sensors Plunger General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Vertical Movement
Hover over image to magnify
#917243-4 | Pkg Qty: 1
$98.19 pkg | $98.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
6 A @ 240 V
IP Rating
68
Actuator Length
0.55 in.
Item
General Purpose Limit Switch
Actuator Location
Top
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Plunger, End, Bushing Mount
Mfr. Part Number
XCMD21F0L1
Amperage
6 A
Movement
Vertical
Arm Material
Metal
NEMA Rating
1, 2, 4, 6, 6P, 12, 13
Basic Actuator Style
Plunger
Operating Force
1.90 in.-lb.
Body Depth
0.63 in.
Operating Temperature Range
-1 deg. F to 158 deg. F
Body Height
1.97 in.
Package Quantity
1
Body Material
Zinc
Replacement Body
ZCMD21L1
Body Style
Miniature
Replacement Head
ZCEF0
Body Width
1.18 in.
Series
Xcmd
Boot Sealed Actuator
No
Shipping Weight
.35 lb.
Brand
TELEMECANIQUE SENSORS
Style
M12 Metal End Plunger
Cable Length
1 m
Threaded for Panel Mounting
Yes
Contact Form
1NC/1NO
Travel
0.20 in.
DC Contact Rating
6 A @ 240 V
Type
General Duty
Depth
0.63 in.
Voltage
240 VAC/DC
Description/Special Features
1m Integrated Cable, Snap Action
Voltage Rating
240 VAC/DC
Electrical Connection
1m Cable, 5 Wire
Width
1.18 in.
Hazardous Location
No
Wiring Entry
Plug-In Cable
Height
1.97 in.
General
AC Contact Rating - Limit Switch
6A @ 240V
DC Contact Rating - Limit Switch
6A @ 240V
Actuator Length - Limit Switch
0.55 in
Mounting - Limit Switch
Stem, Surface
Actuator Location - Limit Switch
Top
Mounting Hole - Limit Switch
(2) 0.16 in dia
Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Spacing - Limit Switch
0.79 in
Body Depth - Limit Switch
0.63 in
Operating Temp. Range
-13° to 158°F
Body Height - Limit Switch
1.97 in
Special Features
1m Integrated Cable, Snap Action
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
1.18 in
Stem Thread - Limit Switch
M12 x 1.00 in
Contact Form- Switches
1NC/1NO
Threaded for Panel Mounting - Limit Switch
Yes
Product Description
This miniature limit switch features metal arm construction and zinc body construction. Use in packaging, materials handling, conveying, machining, and food and beverage handling.
Documents
Item Barcode
Min. Limit Switch,1m
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5WJJ2 | Min. Limit Switch,1m |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 032-002-050 | Min. Limit Switch,1m |
