SCHNEIDER ELECTRIC

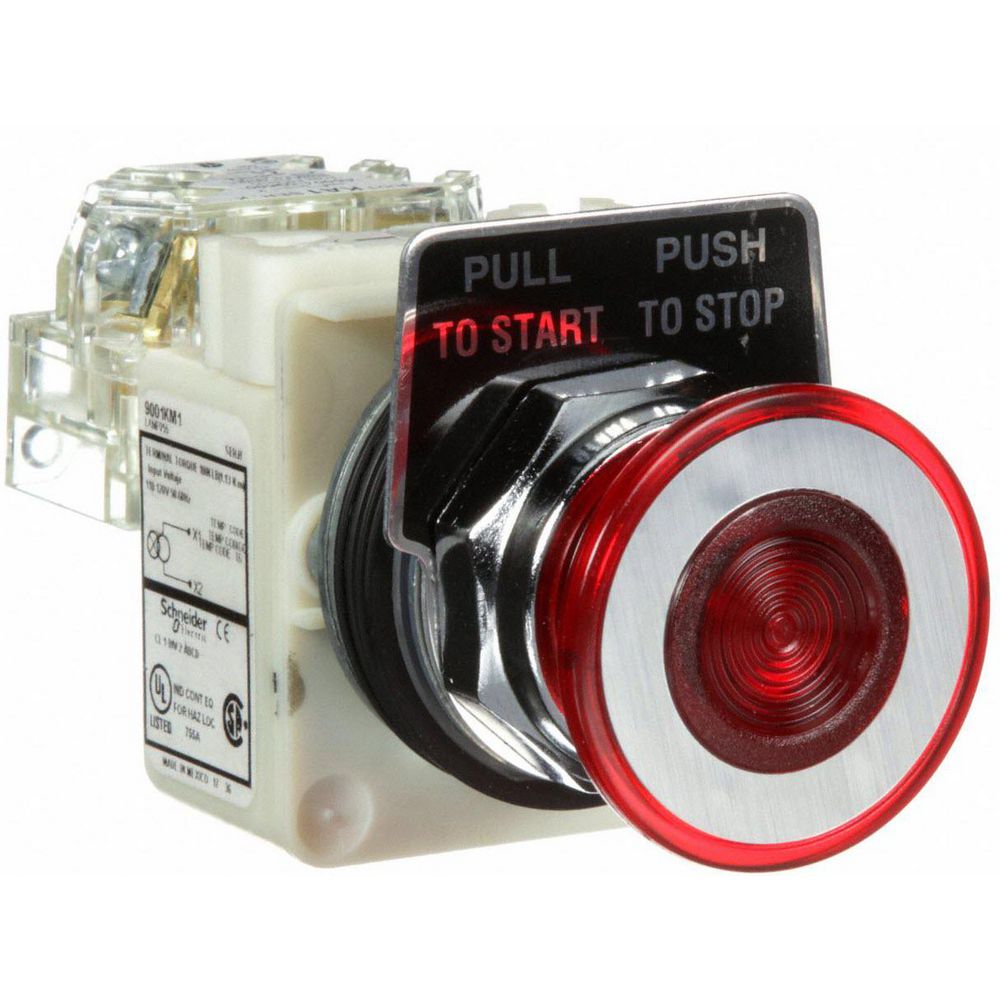

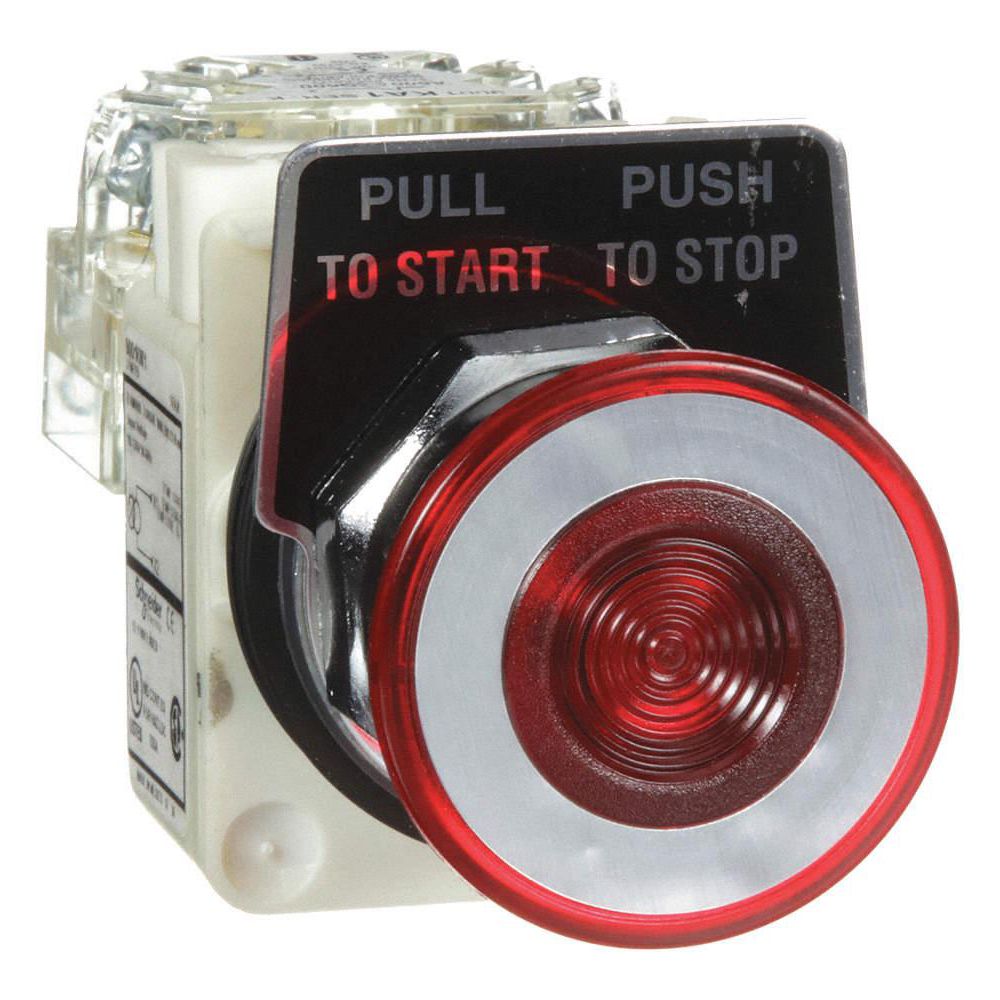

Schneider Electric 30 mm Incandescent 1NO/1NC Illuminated Push Button with Maintained Pull / Maintained Push Action, Red
Hover over image to magnify
#917209-9 | Pkg Qty: 1
$384.42 pkg | $384.42 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Maintained Pull/Maintained Push
Material of Construction
Chrome Plate Zinc Die-Cast
Basic Material
Metal
Mfr. Part Number
9001KR9P1RH13
Bezel
Chrome Plated Zinc Die Cast
NEMA Contact Rating Designation
A600/Q600
Brand
SCHNEIDER ELECTRIC
NEMA Rating
1, 2, 3, 3R, 4, 6, 12, 13
Color Family
Red
Number of Operators
1
Contact Form
1NO/1NC
Package Quantity
1
Contact Rating
10 A @ 600 VAC
Product Size
30 mm
Contact Type
1NO/1NC
Replacement Lamps
Mfr. No. 755
Head Material
Plastic
Shape
Mushroom
IP Rating
66
Shipping Weight
.6 lb.
Item
Illuminated Push Button
Size
30 mm
Lamp Module Type
Transformer
Terminal Connection
Pressure Plate
Lamp Module Voltage
120 VAC
Type
Incandescent Lamp, Transformer
Lamp Type
Incandescent
Type of Operator
41 mm Mushroom Head
Lamp Voltage
6 VAC
Voltage
120 VAC
General
Replacement Lamp
Mfr. No. 755
Standards
UL, CSA, CE
Product Description
30mm Illuminated Push Buttons, Complete Units
- Complete push buttons include interchangeable operators, contact blocks, and light modules. Oiltight, watertight, and dust-tight. Ring nuts are interchangeable. Lamp included. NEMA 4 operators are chrome-plated die-cast zinc for rugged installations. NEMA 4X operators are black plastic for corrosion resistance.
- CSA, CE, and ABS Certified. RoHS compliant.
