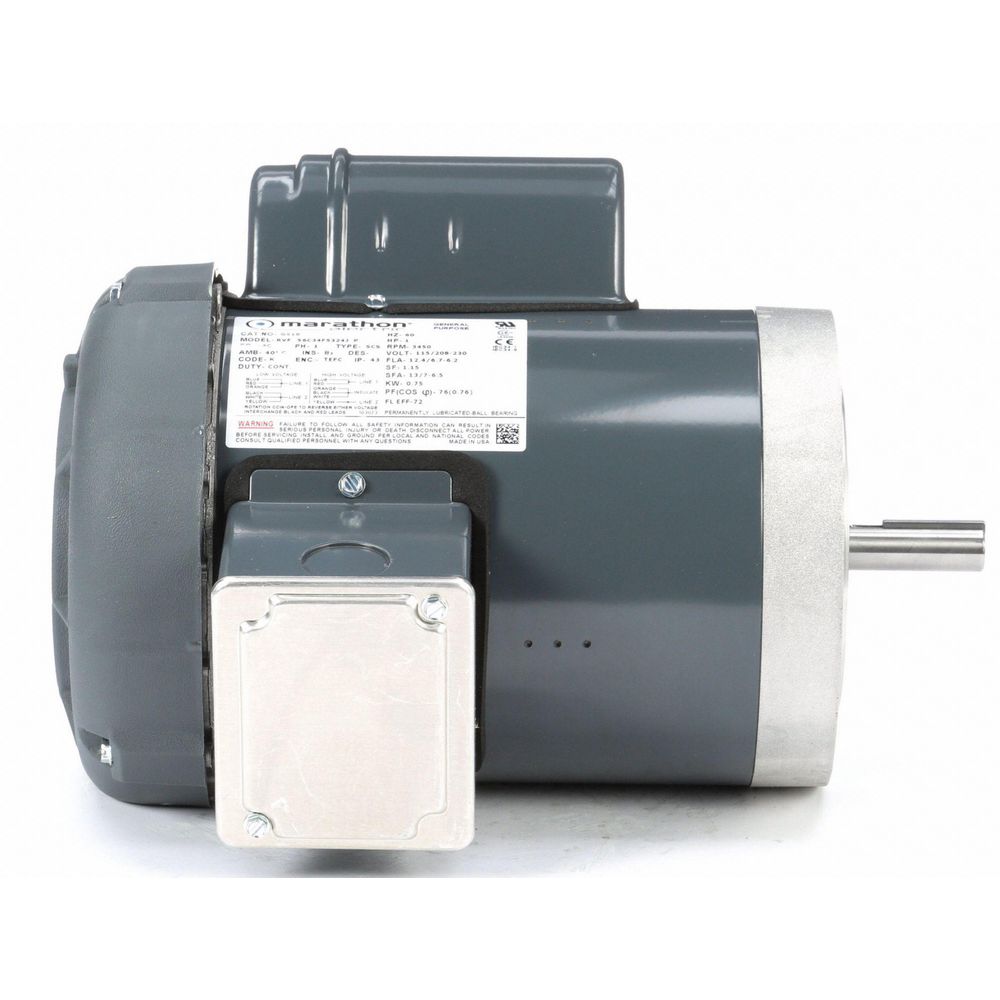

Marathon Motors 1 HP General Purpose Motor,Capacitor-Start,3450 Nameplate RPM,Voltage 115/208-230,Frame 56C

Name: Marathon Motors 1 HP General Purpose Motor,Capacitor-Start,3450 Nameplate RPM,Voltage 115/208-230,Frame 56C
Brand: MARATHON MOTORS
SKU: 9172034
Price: 537.59 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#917203-4Pkg Qty: 1

$537.59 pkg | $537.59 ea

In Stock

Shipping to 43085

Expected to arrive Mon. Mar 24.

Technical Specifications

Key Specifications

Bearings

Ball

Mounting

Rigid Base

Brand

MARATHON MOTORS

Mounting Position

Horizontal

Duty

Continuous

NEMA/IEC Frame

56C

Duty Cycle

Continuous

Nameplate RPM

3450

Enclosure

Totally Enclosed Fan-Cooled

Overall Length

12-5/16 in.

Frame

56C

Package Quantity

Full Load Amps

12.4/6.7-6.2

Phase

Single

Rotation

CW/CCW

Insulation Class

Service Factor

1.15

Item

General Purpose Motor

Shaft Length

2-1/16 in.

Length Less Shaft

10-1/4 in.

Shaft Type

Keyed

Mfr. Part Number

056C34F5324

Shipping Weight

29 lb.

Mfr. Warranty Length

2 yr.

Thermal Protection

None

Motor Design

Capacitor-Start

Voltage

115/208-230 VAC

Motor Type

Capacitor-Start

General

Nominal Efficiency

72 %

Max. Ambient Temp.

40 °C

RPM Group

3001-3600

Motor Application

General Application

RPM Range

3,001-3,600

Motor Efficiency Group

Standard Efficient

Shaft Dia.

5/8 in

Motor Frame Material

Steel

Standards

CE, CSA, UL Recognized

Motor Mounting Type

Face

Usable @ 208V

Yes

No. of Speeds

Voltage Compatibility

115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC

Product Description

NEMA 56 frame capacitor-start general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56Z or 56HC. The letter “Z” indicates that the frame has a nonstandard shaft, “H” indicates that the frame has a set of mounting holes at 3" and 5", and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
