Home All Products Fluid Transfer & Pumps Water Pumps Sewage Pumps, Systems & Accessories Sump Pumps SKU: 917196-1
Share
Print
ZOELLER

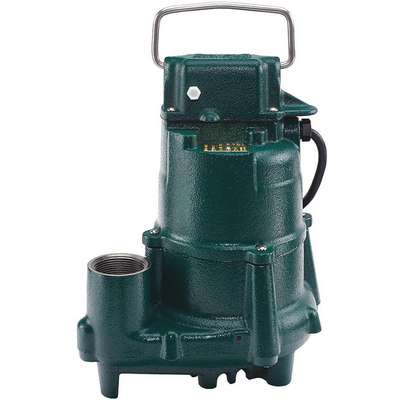

1/2 HP Submersible Sump Pump, No Switch Included Switch Type, Cast Iron Base Material

Hover over image to magnify
Sump Pump,1/2 Hp,1-1/2In Npt,
PI_Asset_965679
Sump Pump,1/2 Hp,1-1/2In Npt,
PI_Asset_965679
1/2 HP Submersible Sump Pump, No Switch Included Switch Type, Cast Iron Base Material Video

#917196-1 | Pkg Qty: 1

$389.58 pkg | $389.58 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Alarm
No
Maximum Liquid Temperature
130°F
Alarm Included
No
Maximum Temperature (Deg. F)
130
Amps
9.4 A
Mechanical Seal
CRB/CMC
Base Material
Cast Iron
Mfr. Part Number
N98
Brand
ZOELLER
Mfr. Warranty Length
3 yr.
Cord Length
10-1/8 in.
Motor RPM
1550
Diameter
10-1/8 in.
NEC Cord Designation
SJOW
Discharge NPT
1-1/2 in. F
Package Quantity
1
GPM of Water @ 10 Ft. of Head
61
Pump Body Material
Cast Iron
GPM of Water @ 15 Ft. of Head
45
Pump HP
1/2
GPM of Water @ 20 Ft. of Head
25
Pump Type
Manual
GPM of Water @ 5 Ft. of Head
72
RPM
1550
Gauge/Conductor
18/3
Shaft Seal
Carbon/Ceramic
Height
12 in.
Shaft Seal Material
Carbon, Ceramic
Horsepower
1/2
Shipping Weight
33.6 lb.
Housing
Cast Iron
Sump Pump Item
Submersible Sump Pump
Housing Material
Cast Iron
Switch Type
None
Hz
60 HZ
Thermal Protection
Yes
Impeller Material
Polypropylene
Top Material
Cast Iron
Item
Submersible Sump Pump
Type
Manual
Maximum Diameter Solids
1/2 in.
Voltage
120 VAC
Maximum Head
23 ft.
Warranty
3 yr.
General
Body Dia.
10 1/8 in
Flow Rate @ 5 Ft. of Head
72 gpm
Discharge Dia.
1 1/2 in
Min. Sump Pit Dia.
18 in
Discharge Gender
Female
Nominal Voltage
110 V AC
Discharge Standard
NPT
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
61 gpm
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 15 Ft. of Head
45 gpm
Switch Actuation
No Switch Included
Flow Rate @ 20 Ft. of Head
25 gpm
Switch Electrical Connection
No Switch Included

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
