SARGENT

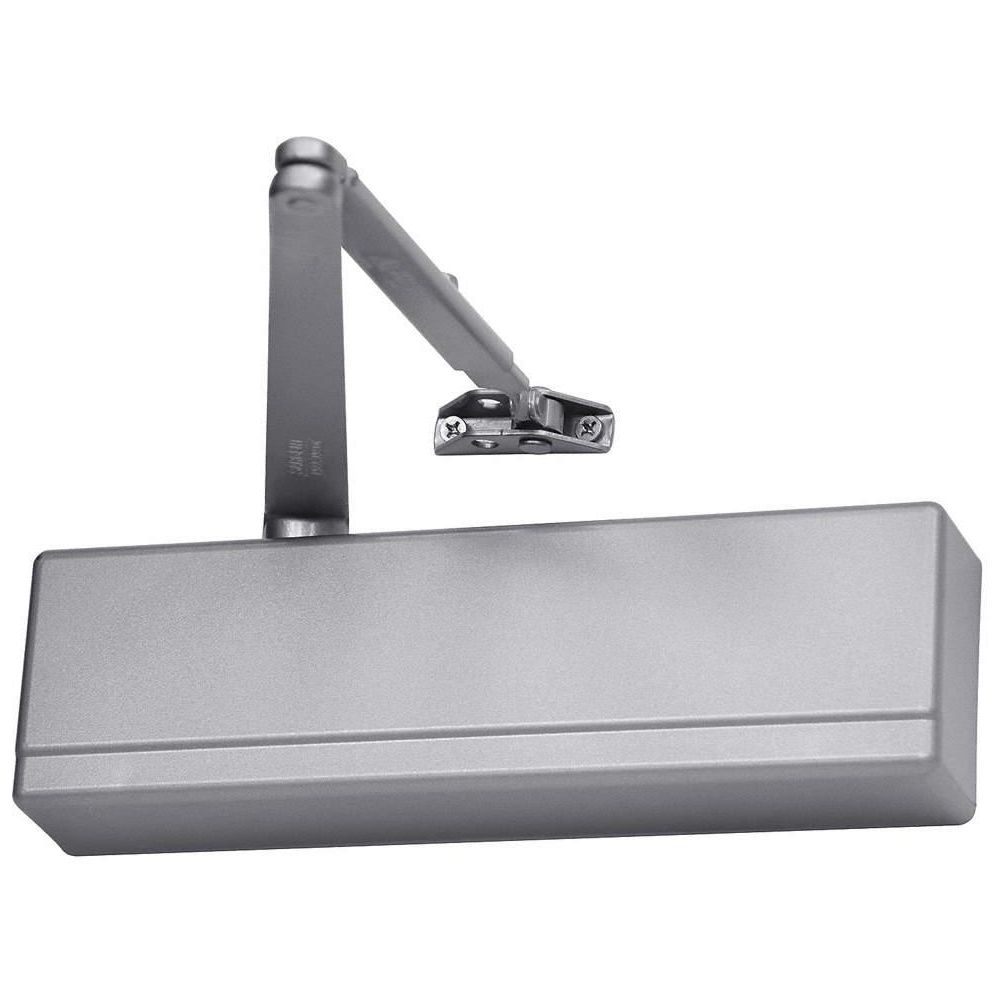

Sargent 351 Series, Heavy Duty, Non Hold Open Door Closer; 2-3/16" Wall Projection, Silver

Hover over image to magnify
Door Closer,Aluminum,13 In.
Door Closer,Aluminum,13 In.
Double tap image to magnify
Door Closer,Aluminum,13 In.
Door Closer,Aluminum,13 In.

#917191-5Pkg Qty: 1

$640.82 pkg | $640.82 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 14.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>The SARGENT® 351 Series Powerglide® door closer is made with an aluminum body and is designed for use with doors exposed to strong drafts and winds. Ideal for use in hospitals and schools. This standard arm model mounts on the pull side of the door with the arm mounted on the face of the frame.</p>

The SARGENT® 351 Series Powerglide® door closer is made with an aluminum body and is designed for use with doors exposed to strong drafts and winds. Ideal for use in hospitals and schools. This standard arm model mounts on the pull side of the door with the arm mounted on the face of the frame.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
ADA Compliance
Yes
Housing Height
4 in.
Arm Material
Die Cast Aluminum
Housing Length
13 in.
Arm Type
Parallel
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Interior/Exterior
Interior and Exterior
Brand
SARGENT
Item
Door Closer
Closer Type
Non Hold Open
Ligature Resistant
No
Color Family
Silver
Mfr. Part Number
351-UO TB EN
Door Opening Width
180 deg.
Mounting Style
Parallel, Regular, Top Frame
Duty Rating
Heavy Duty
Pack Quantity
1
Finish
Painted
Projection
2-3/16 in.
Fire Rating
3 hr.
Series
Sargent 351
Hand Orientation
Non-Handed
Shipping Weight
8.6 lb.
Housing Depth
2-3/16 in.
Spring Size
Adjustable 1 to 6
General
ADA Compliant
Yes
Interior Door Width
60 in
Exterior Door Width
48 in
Max. Door Opening
120° to 180°
Fire Rating - Door Hardware
3 hr
Projection from Wall
2 3/16 in
Includes
Machine Screws and Self Tapping Screws
Standards
ANSI A156.4 Grade 1, UL-10C and UBC 7-2 (1997) Positive Pressure Fire Test

Product Description

The SARGENT® 351 Series Powerglide® door closer is made with an aluminum body and is designed for use with doors exposed to strong drafts and winds. Ideal for use in hospitals and schools. This standard arm model mounts on the pull side of the door with the arm mounted on the face of the frame.
