HUBBELL WIRING DEVICE-KELLEMS

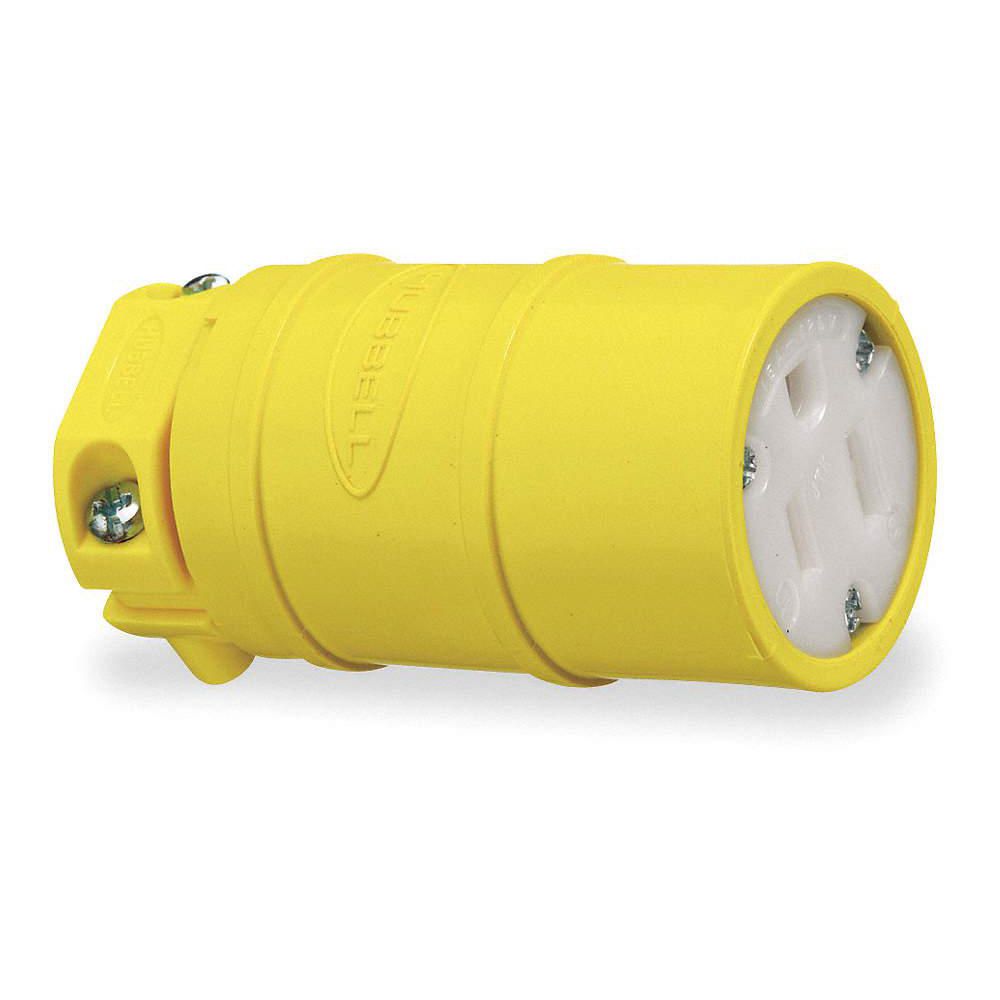

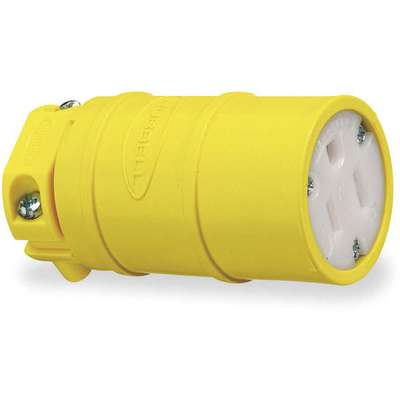

Hubbell Wiring Device-Kellems 15 Amp General Grade Standard Straight Blade Connector, 5-15R NEMA Configuration, Yellow
Hover over image to magnify
#917182-9 | Pkg Qty: 1
$38.16 pkg | $38.16 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Maximum Wire Size
12 AWG
Amps
15 A
Mfr. Part Number
HBL1547
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
5-15
Color Family
Yellow
NEMA Plug Configuration
5-15R
Connection Orientation
Straight
NEMA Receptacle Configuration
5-15R
Contact Material
Brass
Number of Poles
2
Cord Size
0.300 in to 0.655 in
Number of Wires
3
Corrosion Resistant
No
Overall Length
3 in.
Current Rating
15 A
Package Quantity
1
Description
Elastogrip, Grounding
Phase
Single
For Environment
Dry
Polarized
Yes
For Location
Indoor
Power Indicating Light
No
Grade
General
Power Indicator
No
Grounding
Grounded
Shipping Weight
.15 lb.
Horsepower
1/2 hp
Shrouded
No
Housing Color
Yellow
Standards
CSA Certified, NEMA WD-6 Compliant, UL Listed
Housing Material
Thermoplastic Elastomer
Sub-Category
Connectors
IP Rating
IP20
Type
Elastogrip
Insulation Material
Nylon
Voltage
125VAC
Item
Straight Blade Connector
Voltage Rating
125V AC
Material
PVC
Wire Connection Type
Screw Terminals
Material of Construction
PVC
Wiring Style
Standard
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
15 A
Special Features
Moisture, Dust, and Weather Resistant
Grade - Plugs and Receptacles
General
Sub-Category
Connectors
HP
1/2 hp
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Elastogrip®
- Thermoplastic elastomer housing resists weathering, dust, and moisture. Cord seal keeps out splashing liquids and metal filings.
Expertly Selected Product Pairings
Item Barcode
Straight Blade Connector,5-15R,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5Z872 | Straight Blade |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Straight Blade |
