DAYTON

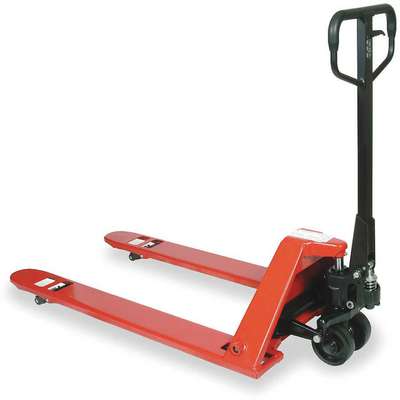

Dayton Low Profile General Purpose Manual Pallet Jack, 4400 lb. Load Capacity, Fork Size: 6-5/16"W x 48"L,

Hover over image to magnify
Pallet Truck,Low Profile,4400
Pallet Truck,Low Profile,4400

#917171-9 | Pkg Qty: 1

$568.17 pkg | $568.17 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bearings
Sealed Ball
Load Center
24 in.
Brand
DAYTON
Material
Steel
Color Family
Red
Mfr. Part Number
2ZE59
Construction
Steel
Operation
Manual
Finish
Polyurethane
Overall Height
48 in.
Fittings
6 Internal Grease
Overall Length
63-1/2 in.
Fork Height Lowered
2 in.
Overall Width
27 in.
Fork Height Raised
6-3/4 in.
Package Quantity
1
Fork Length
48 in.
Roller Diameter
1-31/32 in.
Fork Width
6-5/16 in.
Shipping Weight
175 lb.
Handle
Cushion Grip
Steering Arc
210 deg.
Item
Pallet Jack
Style
Low Profile
Key Pallet Jack Feature
General Purpose
Wheel Material
Polyurethane
Lifting Height Maximum
6-5/16 in.
Width Across Forks
27 in.
Lifting Height Minimum
2 in.
Width Between Forks
14-3/8 in.
Load Capacity
4400 lb.
General
Assembled
Yes
Load Wheel/Tread Material
Steel
For Pallet Type
Open/Closed
Main Wheel Size
7 in
For Surface Type
Concrete
Overall LxWxH
63 1/2 in x 27 in x 48 in
Fork LxW
48 in x 6 5/16 in
Pallet Jack Operation
Manual
Fork Style
Standard
Pallet Jack Style
Low Profile
Fork Type
Fixed
Roller Dia.
1 31/32 in
Grease Fittings
(6) Internal
Rollers
Steel
Lifting Height Max.
6-5/16"
Steer Wheel Diameter
7 in
Lifting Height Min.
2"
Steer Wheel/Tread Material
Polyurethane
Load Wheel Bearing Type
Ball Bearing
Strokes to Maximum Lift Height
16
Load Wheel Diameter
1 31/32 in
Wheel Base
49 1/2 in

Product Description

Low-profile manual pallet jacks have a lower fork height than other styles of pallet jacks, typically 2" or less. Also called lowboy pallet jacks, they can enter very low openings on pallets. Low-profile pallet jacks with a 33" fork width are sometimes called four-way pallet jacks because they can fit into standard openings on the front and back of the pallets as well as low-entry cutouts on the pallets' side stringers, allowing them to enter pallets from all four sides.
