POWER FIRST

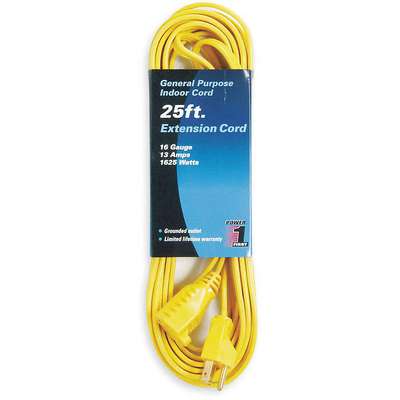

Power First 25 ft. Indoor Extension Cord; Max Amps: 13.0, Number of Outlets: 1, Yellow

Hover over image to magnify
Extension Cord,25 Ft.,Yellow,
PI_Asset_969090
Extension Cord,25 Ft.,Yellow,
PI_Asset_969090

#917170-9 | Pkg Qty: 1

$21.67 pkg | $21.67 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
POWER FIRST
NEMA Connector
5-15R
Cord Ending Type
Single Connector
NEMA Plug Configuration
5-15P
Cord Length
25 ft.
NEMA Receptacle Configuration
5-15R
Cord Type
SPT-2
Nominal Outside Diameter
0.16 in. x 0.36 in.
Extension Cord Length
25 ft.
Number of Conductors
3
Extension Cord Outlet NEMA Configuration
5-15
Number of Outlets
1
Extension Cord Plug NEMA Configuration
5-15
Package Quantity
1
Extension Cords Group
25 to 35 ft.
Plug Configuration
Straight, No Swivel
Gauge/Conductor
16/3
Plug Style
Straight
Indoor/Outdoor
Indoor
Plug Type
Straight, No Swivel
Item
Extension Cord
Power Indicator
No
Jacket Color Family
Yellow
Shape
Flat
Jacket Material
PVC
Shipping Weight
1.2 lb.
Lighted End
No
Temperature Range (Deg. F)
32 to 140 deg. F
Maximum Amps
13 A
Type
Flat
Maximum Wattage
1,625 W
Voltage
125 VAC
Mfr. Part Number
1FD58
Watts
1625 W
NEC Cord Designation
SPT-2
Wire Size
16 AWG
General
Cord Shape
Flat

Product Description

Indoor extension cords with a single outlet consist of flexible electrical cable with a plug at one end and a single receptacle at the other end. They are typically used in lengths of 25 ft. or less in indoor environments to provide power when a device's cord is too short to reach an electrical outlet, such as with equipment in laboratories, workshops, and offices. They have a lightweight jacket that is not suitable for wide temperature ranges and therefore should not be used outdoors.

Extension cords are a length of flexible electrical cable used to bring power to a device located up to 100 ft. away. They are typically used when a device's cord is too short to reach a power source, such as an electrical outlet, or where outlets may be scarce. They have a two- or three-prong plug at one end that connects to the power source and a molded outlet at the other end that devices plug into. Extension cords with a single outlet have a single receptacle, while cords with multiple outlets have two or more receptacles. In general, the more power needed by a device, the thicker the extension cord (or lower the gauge) needs to be to support the electrical current flowing through the cord. Extension cords are commonly used to provide temporary power in a wide range of indoor and outdoor applications.
