HUBBELL WIRING DEVICE-KELLEMS

Hubbell Wiring Device-Kellems Connector, 12K, 3R, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose

Hover over image to magnify

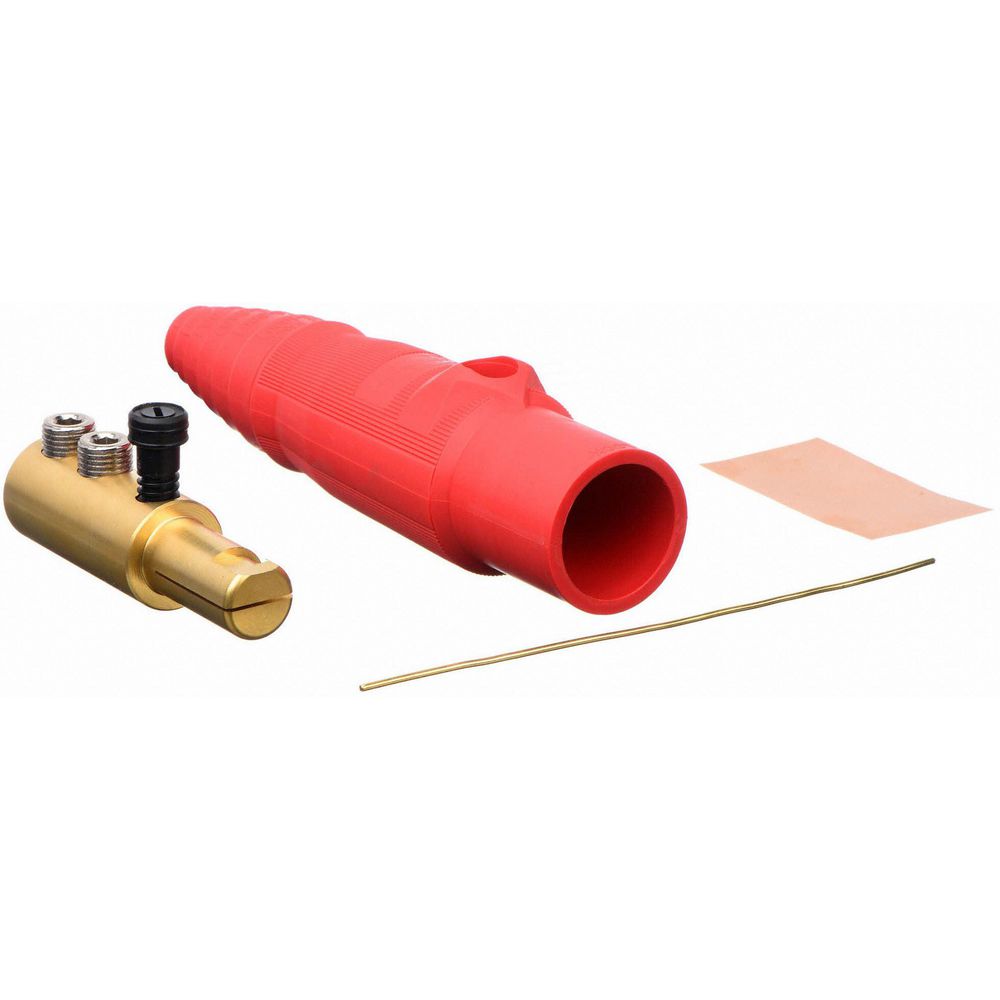

Connector,Double Set Screw,Red,
PI_Asset_947180
Connector,Double Set Screw,Red,
PI_Asset_947180
Double tap image to magnify

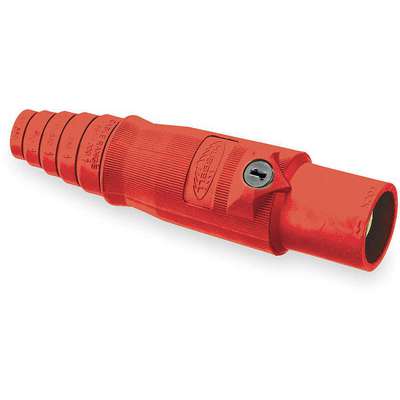

Connector,Double Set Screw,Red,
9171472_1
Connector,Double Set Screw,Red,
9171472_1

#917147-2Pkg Qty: 1

$61.07 pkg | $61.07 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Amps AC
400
Material of Construction
Thermoplastic Elastomer
Amps AC/DC
400AC/DC
Maximum Wire Size
4/0 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mfr. Part Number
HBL400MR
Cable Range
2/0 to 4/0
Minimum Wire Size
2/0 AWG
Color Family
Red
NEMA Rating
12, 3R, 4X
Compatible With
15; 16; Insulgrip
Overall Length
7.01 in.
Conductor Material
Brass
Package Quantity
1
Contact Material
Brass
Series
16
Contact Type
Single Cam
Shipping Weight
.75 lb.
Current Rating
400 A
Single Pole Device Style
Taper Nose
End Type
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Housing Color
Red
Terminal Connection
Double Set Screw
Housing Material
Thermoplastic Elastomer
Type
Single Pole Device
Item
Connector
UL 94 Flammability Rating
HB
Male/Female
Male
Voltage Rating
250V DC, 600V AC
Material
Thermoplastic Elastomer
General
Compatible with Series
15; 16; Insulgrip
Overall Width
1.95 in
Gender
Male
Terminal Connection Type
Double Set Screw

Product Description

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.
