INGERSOLL RAND

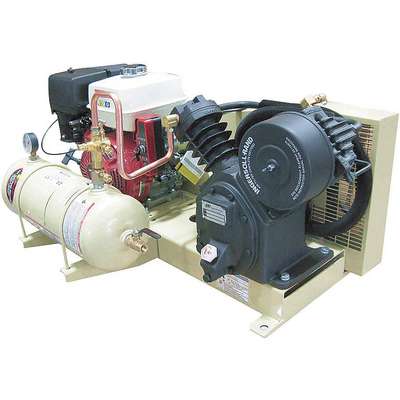

Stationary Air Compressor: 2 Stage, 13 hp Engine, Honda, 17.2 cfm, 4 gal Air Tank

Hover over image to magnify
Stationary Air Compressor,13
Stationary Air Compressor,13
Stationary Air Compressor: 2 Stage, 13 hp Engine, Honda, 17.2 cfm, 4 gal Air Tank Video

#917135 | Pkg Qty: 1

$5,454.19 pkg | $5,454.19 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Required Items

Items below are required. They are not included and need to be ordered separately.
Start Up Kit
Pkg Qty: 1
$266.07 pkg
Start Up Kit
Pkg Qty: 1
$266.07 pkg
Start Up Kit
Pkg Qty: 1
$266.07 pkg

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Overall Height
22-7/64 in.
Air Consumption
scfm
Overall Length
40-1/2 in.
Brand
INGERSOLL RAND
Overall Width
27 in.
Design
Truck Bed Mounting
Package Quantity
1
Engine Brand
Honda
Pump RPM
1500
Finish
Powder Coated
Shipping Weight
411 lb.
Free Air CFM @ Max Pressure
24
Tank Size
4.0 gal.
Fuel Type
Gasoline
Tank Style
Hot Dog
Item
Stationary Air Compressor
Tank Type
Horizontal
Maximum Pressure
175 psi
Type
Two Stage Base Plate
Mfr. Part Number
2475X13GH
Width
27 in.
Number of Stages
2
General
ASME Tank
Yes
Free Air CFM @ Max. Pressure - Air Compressor
17.2
Air Compressor Oil Capacity
41.6 oz
Free Air Flow Rate
17.2 cfm
Air Tank Size
4 gal
Free Air Flow Rate @ Maximum Pressure
17.2 cfm
Air Tank Style
Hot Dog
Fuel Tank Capacity - Air Compressor
1.7 gal
Alternator Included
Yes
Fuel Type - Engine
Gasoline
Compressor Oil Stock No.
2YY83
Max. Pressure - Air Compressor
175 psi
Engine Alternator
Yes
Number of Stages - Air Compressor
2
Engine Electrical Start
Yes
Outlet Gender
Female
Engine HP
13
Pump Oil Capacity
41.6 oz
Engine HP - Air Compressor
13.0 hp
Pump Stock Number
4R800
Engine Oil Capacity
38.4 oz
Pump Type - Air Compressor
Piston
Engine Oil Stock Number
4ZF20
Sound Level Range
Standard (70 dBA or more)
Engine Output Power
13 hp
Standards
ASME and CRN for Tanks & Safety Relief Valves, EPA II for Emission (Engine Only), EEC and Canadian RFI Standards (Engine Only)
Engine Pull Start
Yes
Tank Size - Air Compressor
4.0 gal
Engine Start Type
Electric; Recoil
Tank Style - Air Compressor
Hot Dog
Engine Starter Type - Air Compressor
Electric, Recoil
Valve Control
Automatically Idles Engine At 175 psi, Pilot, Resumes Full Throttle At 145 psi
Free Air CFM @ Max. Pressure
24.0

Product Description

This stationary air compressor is powered by gasoline and suitable for a wide variety of applications. Use with tire changers, inflation devices, pneumatic tools and controls, mailers, and spraying equipment.
