HANKISON

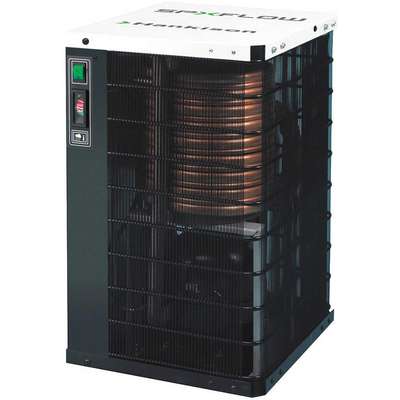

25 CFM Compressed Air Dryer, For 7.5HP Maximum Air Compressor, 250 psi
Hover over image to magnify
#917107-7 | Pkg Qty: 1
$2,073.80 pkg | $2,073.80 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Mfr. Part Number
HPR25
Amps AC
6
Overall Depth
16 in.
Brand
HANKISON
Overall Height
22 in.
CFM
25
Overall Width
15 in.
Depth
16 in.
Package Quantity
1
Dew Point
46°F
Phase
1
Finish
Powder Coated
Pipe Size
3/4 in. NPT
Full Load Amps
6
Power
0.41kW
ISO Class
6
Shipping Weight
72.75 lb.
Item
Compressed Air Dryer
Voltage
115 VAC
Maximum Air Compressor HP
7-1/2
Width
15 in.
Maximum Pressure
250 psi
General
Air Inlet Gender
Female
ISO Class - Air Treatment
6
Air Inlet Type
NPT
Includes
6 ft Power Cord, Pneumatic Drain
Air Outlet Size
3/4 in
Input Voltage - Air Treatment
115V AC
Air Outlet Type
NPT
Max. Flow - Air Treatment
25 cfm
Bracket Kit
Yes
Max. Incoming Pressure - Air Treatment
250 psi
Bracket Kit Included
Yes
Maximum Flow @ 100 psi
25 scfm
Connection Size - Air Treatment
3/4 in NPT
Minimum Operating Pressure
30 psi
Cycling Type
Non-Cycling
Number of Air Inlets
1
Dew Point (Deg. F)
46
Number of Air Outlets
1
Features
On/Off Switch, Power On Light
Phase - Air Treatment
Single
For Maximum Compressor Output Power
7.5 hp
Refrigerant
R-134A
Full Load Current
6 A
Refrigeration Compressor HP
1/4 hp
Heat Exchanger Material
Copper
Refrigeration Compressor Horsepower
0.25 hp
Product Description
Fully automatic operation ensures maximum moisture removal. Easily installed unit comes preassembled with quality components for long service life. ISO Class dryer capacity is established at 100°F inlet temp., 100°F ambient temp., and 100 psig.
