GOULDS WATER TECHNOLOGY

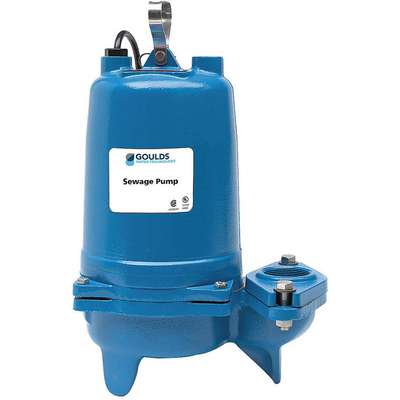

Sewage Ejector Pump: 1-1/2, 480V AC, No Switch Included, 3, Cast Iron, 4.80

Hover over image to magnify
Submersible Pump,1-1/2HP,460V,
Submersible Pump,1-1/2HP,460V,
Double tap image to magnify
Submersible Pump,1-1/2HP,460V,
Submersible Pump,1-1/2HP,460V,

#917097-4Pkg Qty: 1

$2,509.74 pkg | $2,509.74 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 07.
|

Technical Specifications

Key Specifications
Agency Compliance
UL Listed, CSA Certified
Maximum Liquid Temperature
104°F
Amps
4.8 A
Maximum Temperature (Deg. F)
104
Base Material
Cast Iron
Mfr. Part Number
WS1534BHF
Bearing Type
Ball
Motor RPM
3450
Brand
GOULDS WATER TECHNOLOGY
Motor Type
3-Phase
Cord Length
20 ft.
Off Point
N/A
Diameter
12-1/2 in.
On Point
N/A
Discharge NPT
2 in.
Package Quantity
1
GPM of Water @ 20 Ft. of Head
186
Phase
3
GPM of Water @ 25 Ft. of Head
170
Pump Body Material
Cast Iron
GPM of Water @ 30 Ft. of Head
150
Pump HP
1-1/2
GPM of Water @ 40 Ft. of Head
110
Pump Type
Manual
GPM of Water @ 50 Ft. of Head
67
RPM
3450
GPM of Water @ 60 Ft. of Head
29
Shaft Material
300 Stainless Steel
Height
19 in.
Shaft Seal
Silicon Carbide
Horsepower
1-1/2
Shaft Seal Material
Silicone Carbide
Housing
Cast Iron
Shipping Weight
88 lb.
Housing Material
Cast Iron
Switch Type
None
Impeller Material
Cast Iron
Thermal Protection
No
Input Phase AC
3
Top Material
Cast Iron
Item
Submersible Sewage Pump
Type
Manual
Maximum Diameter Solids
2 in.
Voltage
460 VAC
Maximum Head
67 ft.
General
Body Dia.
12 1/2 in
Nominal Voltage
480V AC
Discharge Dia.
2 in
Phase - Pumps
3
Discharge Gender
Female
Rated Voltage
460V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 15 Ft. of Head
200 gpm
Standards
CSA Certified
Flow Rate @ 20 Ft. of Head
186 gpm
Switch Actuation
No Switch Included
Flow Rate @ 40 Ft. of Head
110 gpm
Switch Electrical Connection
No Switch Included
Flow Rate @ 60 Ft. of Head
29 gpm

Product Description

These general purpose three-phase 200 to 480V sewage ejector pumps use a higher voltage that allows for larger motors that require less current than lower-voltage motors. They also use three-phase power that's more efficient than one-phase power. Pumps remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. Three-phase pumps require a control panel.

Documents

GOULDS WATER TECHNOLOGY WS BHF Series Tech Specs
