APOLLO
Ball Valve: 3/8 in Pipe Size, Std, 600 psi CWP Max. Pressure, -20° to 450°F, Female NPT, PTFE

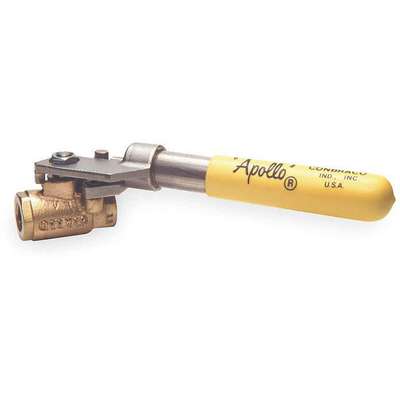

Hover over image to magnify
#917075-8 | Pkg Qty: 1
$206.26 pkg | $206.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Valve Group
Manual
Mfr. Part Number
7150201
Ball Valve Item
Ball Valve
Overall Length
6.94 in.
Body Material
Bronze
Package Quantity
1
Body Style
Inline
Port
Standard
Brand
APOLLO
Seal Material
PTFE
Connection Type
FNPT x FNPT
Seat Material
PTFE
For Pipe Size
3/8 in.
Shipping Weight
1.4 lb.
General Connection Type
Female NPT
Stem Material
316 Stainless Steel
Handle Material
304 Stainless Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Spring Return
Temperature Range (Deg. F)
-20 to 450 deg. F
Item
Ball Valve
Valve Style
2-Piece
Maximum Pressure
600 psi CWP
General
Ball Valve Product Group
Manual
Standards
MSS-SP-110
Body Seal Material
PTFE
Valve Basic Body Material
Bronze
Features
Spring Return Handle
Valve Structure
2-Piece
Max. Steam Pressure
150 psi WSP
Product Description
Bronze
- Max. pressure: 600 psi WOG; 150 psi WSP temperature range: -20° to 500°F
- 2-pc. valves have MPTFE seats. Stainless steel lever components.
- Meet MSS-SP-110 standards.
- Ball Valves with Spring Return Handle
- Standard-port valves have a blowoutproof stem and adjustable packing gland. FNPT connections.
