ASHLAND CONVEYOR

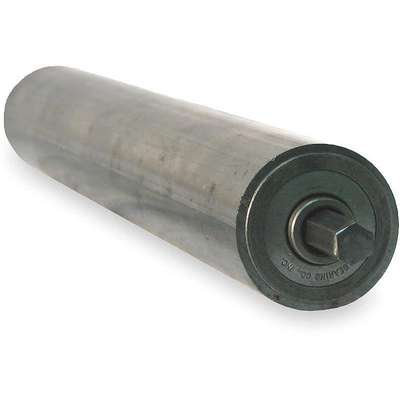

Ashland Conveyor Replacement Roller, High Durability, 13" For Between Frame Width, 270 lb. Roller Load Capacity

Hover over image to magnify
Steel Replacement Roller,1.9In
PI_Asset_947144
Steel Replacement Roller,1.9In
PI_Asset_947144
Ashland Conveyor Replacement Roller, High Durability, 13" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, High Durability, 13" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, High Durability, 13" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, High Durability, 13" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, High Durability, 13" For Between Frame Width, 270 lb. Roller Load Capacity Video

#917072-6 | Pkg Qty: 1

$25.73 pkg | $25.73 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Axle Shape
Hex
Mfr. Part Number
KD13
Axle Size
7/16 in.
Motorized
No
Bearings
Commercial Light Oil
Mounting
Spring Retained
Brand
ASHLAND CONVEYOR
Package Quantity
1
Capacity
270 lb.
Roller Diameter
1-15/16 in.
Construction
9 ga. Steel
Roller Gauge
9 ga.
Conveyor Roller Material
Steel
Roller Performance
High Durability
Diameter
1-29/32 in.
Shaft
7/16 in. Hex Plain Steel
Duty Rating
Heavy-Duty
Shipping Weight
4.2 lb.
For Between Frame Width
13 in.
Type
Medium Duty
Item
Replacement Roller
General
Between Frame (In.)
13
Roller Dia.
1 15/16 in
Capacity (Lb.)
270
Roller Finish/Coating
Unfinished
Dia. (In.)
1-29/32
Roller Load Capacity
270 lb

Product Description

High-durability steel conveyor rollers have a higher weight capacity and provide more resistance to impact, shock, and abrasion during conveying tasks than general purpose steel rollers. They are typically used for conveying heavy loads such as pallets, drums, and castings. The rollers' standard ball bearings roll smoothly at slow speeds and start rolling more easily than precision bearings. Conveyor rollers are used in roller conveyors and material transport stands to support and move bulky items. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads. These rollers can be used to replace or upgrade the existing rollers on compatible conveyors or stands.

Conveyor rollers are used in unpowered (gravity-flow) roller conveyors, powered roller conveyors, roller-bed belt conveyors, and material transport stands to support and move bulky items such as boxes and totes. These replacement rollers can be used to replace or upgrade the existing rollers on compatible conveyors or stands. Each roller has a spring-retained axle that can be pushed in to install or remove the roller from the conveyor frame or stand. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads in warehousing, package handling, manufacturing, and distribution tasks. Loads roll forward and back on the rollers, and they can be pushed from side to side along the width of the conveyor.
