COXREELS

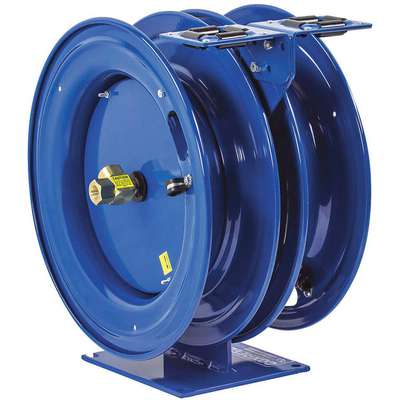

Dual Reel Spring Return Hose Reel, Air, Water, 300 psi, 0 psi, Hose Capacity 25 ft. (3/8" ID)

Hover over image to magnify
Dual Purpose Reel,Sprng,3/

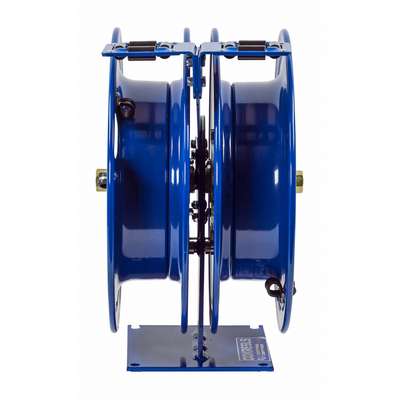

PI_Asset_1501985
Dual Purpose Reel,Sprng,3/
PI_Asset_1501985
Dual Reel Spring Return Hose Reel, Air, Water, 300 psi, 0 psi, Hose Capacity 25 ft. (3/8" ID) Video
Dual Reel Spring Return Hose Reel, Air, Water, 300 psi, 0 psi, Hose Capacity 25 ft. (3/8" ID) Video
Dual Reel Spring Return Hose Reel, Air, Water, 300 psi, 0 psi, Hose Capacity 25 ft. (3/8" ID) Video
Dual Reel Spring Return Hose Reel, Air, Water, 300 psi, 0 psi, Hose Capacity 25 ft. (3/8" ID) Video

#917071-8 | Pkg Qty: 1

$518.71 pkg | $518.71 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Mfr. Part Number
C-LPL-325-325
Bearings
Permanently Lubricated
Minimum Operating Temperature
-40 deg. F
Brand
COXREELS
Mounting Location
Bench, Floor, Truck, Wall
Drive Type
Spring Return
Mounting Location Type
Floor, Wall, Ceiling
Duty Rating
Heavy Duty
Number of Guide Arms
Single Arm
Enclosed
No
Overall Dimensions
17 in. L x 10-1/2 in. W x 18-5/8 in. H
Finish
Powder Coated
Overall Height
18-5/8 in.
Hose Capacity
25 ft. (3/8 in ID)
Overall Length
17 in.
Hose Included
No
Overall Width
11-1/2 in.
Hose Inside Diameter
3/8 in.
Package Quantity
1
Hose Reel Group
Combination Cord and Hose Reels
Pedestal Type
Single Pedestal
Housing Material
Steel
Reel Color
Blue
Includes Hose
No
Reel Diameter
17 in.
Item
Combination Air/Water Reel
Reel Inlet
3/8 in. (F)NPT
Latch
Locking
Reel Material
Steel
Latch Type
Locking
Reel Width
10-1/2 in.
Length
17 in.
Seal Type
Nitrile
Maximum Operating Temperature
150 deg. F
Shipping Weight
59 lb.
Maximum Pressure
300 psi
Speed Limited Retraction
No
Maximum Temperature
150 deg. F
Type
Combination Air/Water Hose Reel
Maximum Temperature (Deg. F)
150
General
Application
Air/Air, Air/Water, Water/Water
Mount Hole Diameter
1/2 in
Base Motion Type
Stationary
Mounting Hole Center to Center Height
8 in
Bearing Construction
Permanently Lubricated
Mounting Hole Center to Center Width
7 in
Corrosion-Resistant
Yes
Number of Mount Holes
4
Features
1 in. Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates independently, Heavy Gauge 1/4 in. Steel Base and Support Post For Maximum Stability, One Mounting Pattern Allow 1/2 the installation Time Required to install 2 Reels At One Station, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
Reel Finish
Powder Coated
For Dual Hose
Yes
Standards
CE
Hose Inside Dia.
3/8 in
Swivel Inlet Size
3/8 in
Hose Reel Primary Application
Air, Water
Swivel Inlet Thread Size
3/8 in - 18
Hose Reel Product Group
Combination Air/Water Reel
Swivel Inlet Type
NPT
Hose Reel Type
Wall Mount Hose Reel
Swivel Material
Brass
Minimum Operating Pressure
0 psi
Swivel Outlet Size
3/8 in
Mount Base Height
9 in
Swivel Outlet Thread Size
3/8 in - 18
Mount Base Width
8 in
Swivel Outlet Type
NPT

Product Description

Air or water combination spring-return hose reels combine two hose reels in one unit where each reel and hose operates independently and can carry air in one hose, water in the other hose. These combination hose reels are used where two hoses are needed to complete a job and where space is limited. The heavy-duty steel, single-mount base provides stability and is powder-coated for corrosion resistance. Two external fluid paths include 90° full-flow NPT swivel inlets and nitrile seals. These low-pressure (up to 500 psi) reels mount on a wall, floor, or overhead with one mounting pattern to save installation time, and include adjustable guide arms. These air/water combination hose reels connect air or water hoses to pneumatic tools, with air/water services, and in washdown applications.
