INTERMATIC

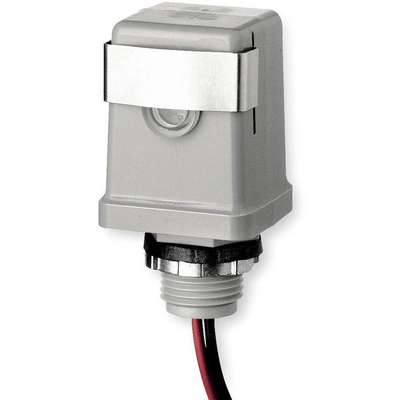

Intermatic Photocontrol, 208 to 277VAC Voltage, 4150 Max. Wattage, Stem Mounting
Hover over image to magnify
#917067-3 | Pkg Qty: 1
$39.02 pkg | $39.02 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
INTERMATIC
Maximum Incandescent Amps
15
Color Family
Gray / White
Maximum Wattage
4150
Contact Form
SPST
Mfr. Part Number
K4123C
Depth
1-9/16 in.
Mfr. Warranty Length
2 yr.
Description/Special Features
1/2 in. Threaded with Light Level Shield with Built in Delay
Mounting
Stem
Enclosure Type
Raintight
NEMA Rating
Not Rated
Foot Candles Off
3 to 15
Pack Quantity
1
Foot Candles On
1.0 to 5.0
Setting
Dusk to Dawn
Housing Material
Polypropylene
Shipping Weight
.2 lb.
Item
Photocontrol
Temperature Range
-40 deg. F to 158 deg. F
Length
2-5/16 in.
Voltage
208 to 277 VAC
Maximum Ballast Amps
8.3
Width
1-9/16 in.
General
For Use With
Parking Lot Lighting, Area Lighting, Car Lot Lighting, Security Lighting, Billboard Lighting, Municipal Lighting, Roadway Lighting, Street Lighting
Special Features
1/2 in. Threaded with Light Level Shield with Built in Delay
Includes
Locking Nut, Washer Gasket
Standards
CSA, UL
Product Description
This photo control is designed to provide "dusk-to-dawn" control over street lighting, parking lot lighting, billboard lighting, and security lighting. It features a light level slide adjustment and a 1/2" threaded stem. It also includes a weather gasket and locking nut.
Item Barcode
Photocontrol,Stem,208 To 277VAC
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5U788 | Photocontrol, Stem,208 to |
 | UNSPSC CODES | 39121524 | |
 | VMRS (ATA) CODES | 034-004-081 | Photocontrol, Stem,208 to |
