E-PLEX

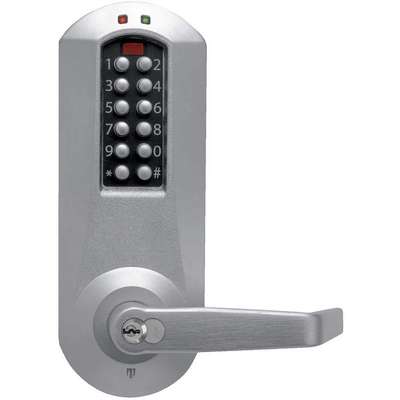

Electronic Keyless Lock, Entry with Key Override, Satin Chrome, Series E5000

Hover over image to magnify
Electronic Lock,Satin Chrome,
Electronic Lock,Satin Chrome,

#917061-8 | Pkg Qty: 1

$1,085.82 pkg | $1,085.82 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Latch Type
3/4 in.
Battery Life
Up to180,000 Cycles
Lock Style
Solid Cast
Brand
E-PLEX
Mfr. Part Number
E5066SWL62641
Door Plate Thickness
1-3/4 in. to 2-1/4 in.
Mounting Style
Mortise
Finish
Satin Chrome
Number of Keys
12
Fire Rating
3 hr.
Operating Temperature Range
-31 deg. F to 130 deg. F Housing -31 deg. F to 151 deg. Front Housing
Function
Entry with Key Override
Outside Depth
3-13/16 in.
Grade
1
Outside Height
8-7/8 in.
Hand
Nonhanded
Outside Width
3-3/8 in.
Handle Type
Lever
Package Quantity
1
Inside Depth
2-1/8 in.
Power Source
(4) AA Batteries
Inside Height
8-7/8 in.
Series
E5000
Inside Width
3-3/16 in.
Shipping Weight
11.56 lb.
Item
Electronic Keyless Lock
Weather Resistant
Yes
General
ADA Compliant
Yes
Keypad Material
Solid Metal
Accepts
Schlage Core
Latch Front Size
3/4 in
Access Method
Keypad
Latch Length
3/4 in
Backset
2-3/4 in.
Lock Material
Solid Cast
Door Thickness
1-3/4 in to 2-1/4 in
Max. Proximity Range
At Lock
Electrical/Mechanical
Electrical
Max. User Codes
100
Event Audit Trail
9000
Operating Temp. Range
-31° to 130°F Housing, -31° to 151°F Front Housing
For Use With
Schlage R/C
Standards
UL/ULC Fire Door Rating for in A in Labeled Doors, ANSI/BHMA A156.2, Grade 1 Certification
Includes
Kaba 1599 6-pin cylinder (prepped to Kaba 90 or Schlage "C" Keyway, keyed different) and tailpieces
Timed Entry Allowance
2 to 20 sec
Key Override Options
Schlage Interchangeable Core
Timed Entry Allowance (Sec.)
2 to 20
Keypad
12 Button

Product Description

Electronic Keyless Lock, Function Entry with Key Override, Access Method Keypad, Mounting Style Mortise, Lock Material Solid Cast, Finish Satin Chrome, Series E5000, Handle Type Lever, Door Thickness 1-3/4 in to 2-1/4 in, Key Override Options Schlage Interchangeable Core, Hand Nonhanded, Outside Height 8 7/8 in, Outside Width 3 3/8 in, Outside Depth 3 13/16 in, Keypad Material Solid Metal, Power Source (4) AA Batteries, Battery Life Up to180,000 Cycles
