INTERMATIC

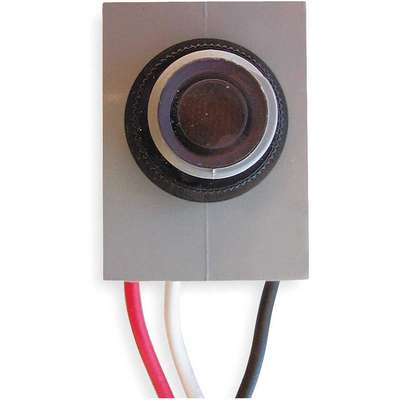

Intermatic Photocontrol, 208 to 277VAC Voltage, 4150 Max. Wattage, Fixed Mounting
Hover over image to magnify
#917045-7 | Pkg Qty: 1
$34.15 pkg | $34.15 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
INTERMATIC
Maximum Incandescent Amps
15
Color Family
Gray
Maximum Wattage
4150
Contact Form
SPST
Mfr. Part Number
K4023C
Depth
13/16 in.
Mfr. Warranty Length
2 yr.
Description/Special Features
Heavy Duty Wired-in with Built in Delay
Mounting
Fixed
Enclosure Type
Raintight
NEMA Rating
Not Rated
Foot Candles Off
3 to 15
Pack Quantity
1
Foot Candles On
1.0 to 5.0
Setting
Dusk to Dawn
Housing Material
Polycarbonate
Shipping Weight
.15 lb.
Item
Photocontrol
Temperature Range
-40 deg. F to 158 deg. F
Length
1-13/16 in.
Voltage
208 to 277 VAC
Maximum Ballast Amps
8.3
Width
1-5/16 in.
General
For Use With
Parking Lot Lighting, Area Lighting, Car Lot Lighting, Security Lighting, Billboard Lighting, Municipal Lighting, Roadway Lighting, Street Lighting
Special Features
Heavy Duty Wired-in with Built in Delay
Includes
Locking Nut, Washer Gasket
Standards
CSA, UL
Product Description
This photo control is designed to provide automatic switching for outdoor lighting loads. It features a built-in delay to keep controlled lighting from switching off due to ambient light. It also features a thermal design with high-impact polycarbonate housing, a metal film resistor, bi-metal blades, and snap-action contact blades.
Item Barcode
Photocontrol,Fixed,208 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5U791 | Photocontrol, Fixed,208 to |
 | UNSPSC CODES | 39121524 | |
 | VMRS (ATA) CODES | 034-004-081 | Photocontrol, Fixed,208 to |
