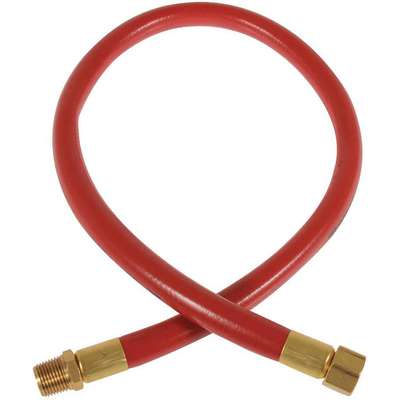

Snubber Hose: 1/2 in Hose Inside Dia., 24 in Hose Lg, Red, Brass x Brass, FNPSM x MNPT

Hover over image to magnify
Snubber Hose,1/2in.x24in,Pvc,
Snubber Hose,1/2in.x24in,Pvc,

#917012-6 | Pkg Qty: 1

$16.63 pkg | $16.63 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Maximum Pressure
300 psi
Color Family
Red
Mfr. Part Number
45FM93
Coupled Assembly/Bulk
Coupled Assembly
Outside Diameter
25/32 in.
Cover Material
PVC
Package Quantity
1
Fitting Size
3/8 in. x 3/8 in.
Shipping Weight
.52 lb.
Fitting Type
FNPSM x MNPT
Subgroup | Pneumatic Hose
Snubber Hose
Hose Length
24 in.
Swivel Fitting
Yes
Hose Media
Air
Temperature Range
-10 deg. F to 158 deg. F
Inside Diameter
1/2 in.
Tube Material
PVC
Item
Snubber Hose
General
Compatible Chemicals
Deionized Water, Fresh Water, Salt Water
Hose Fittings
Brass 3/8 in FNPSM x Brass 3/8 in MNPT
For Media Type
Air, Lubricated Air, Water
Hose Outside Dia.
25/32 in
Hose Configuration
Coupled Assembly
Hose Tube Material
PVC
Hose Cover Material
PVC
Max. Working Pressure @ 70 F
300 psi
Hose Fitting A Material
Brass
Safety Factor
4:1
Hose Fitting A Type
FNPSM
Standards
RMA Class B
Hose Fitting B Material
Brass
Swivel Material
Brass
Hose Fitting B Type
MNPT

Product Description

PVC snubber hoses with PVC covers are lightweight, which minimizes the effort required to lift or move them. The hoses' tube and cover are made from PVC, which is flexible and resists exposure to many chemicals. These hoses are typically used to connect impact tools to compressors.

Snubber hoses are short lengths of hose that connect a pneumatic impact tool to a main air hose. Also known as whip hoses, snubber hoses absorb shock and vibration from the impact tool that could damage the main air hose. These air hose assemblies have fittings installed on both ends for connecting to pneumatic hoses and equipment.
