INTERMATIC

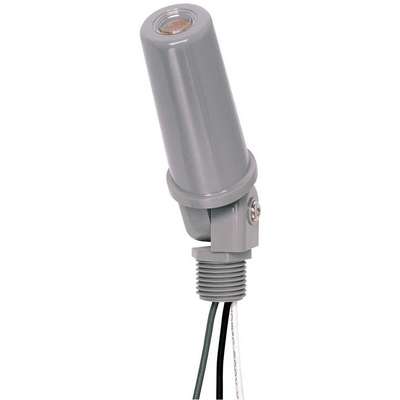

Intermatic Photocontrol, 120VAC Voltage, 1800 Max. Wattage, Stem and Swivel Mounting
Hover over image to magnify
#917001 | Pkg Qty: 1
$28.62 pkg | $28.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
INTERMATIC
Maximum Incandescent Amps
15
Color Family
Gray
Maximum Wattage
1800
Contact Form
SPST
Mfr. Part Number
K4251
Depth
1-1/2 in.
Mfr. Warranty Length
1 yr.
Description/Special Features
Photo Eye Located On Top And Are Designed For Spot/flood Type Fixtures
Mounting
Stem and Swivel
Enclosure Type
Raintight
NEMA Rating
Not Rated
Foot Candles Off
3 to 15
Pack Quantity
1
Foot Candles On
1.0 to 5.0
Setting
Dusk to Dawn
Housing Material
Polycarbonate
Shipping Weight
.2 lb.
Item
Photocontrol
Temperature Range
-40 deg. F to 158 deg. F
Length
5-1/2 in.
Voltage
120 VAC
Maximum Ballast Amps
8.3
Width
1-1/2 in.
General
For Use With
Parking Lot Lighting, Area Lighting, Car Lot Lighting, Security Lighting, Billboard Lighting, Municipal Lighting, Roadway Lighting, Street Lighting
Standards
CSA
Includes
Washer Gasket, Locking Nut
Product Description
Photocontrols
- Designed for outdoor use, these commercial-grade thermal photocontrols (except instant On/Off) feature a built-in delay to prevent false cycling due to car headlights, lightning, etc. Cadmium sulfide photocell and sonic-welded polycarbonate case and lens.
- CSA Certified (except No. 5U789).
