1-1/2" 22-1/2° Street Elbow, Hub x Spigot Fitting Connection Type

Hover over image to magnify

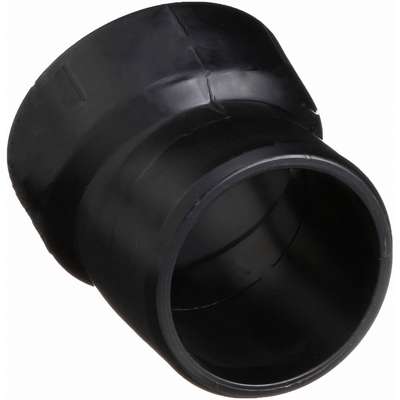

22-1/2 Street Elbow,1-1/2 In
PI_Asset_927281
22-1/2 Street Elbow,1-1/2 In
PI_Asset_927281

#916940-8 | Pkg Qty: 1

$9.89 pkg | $9.89 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Angle
22-1/2 deg.
Fitting Connection Type
Hub x Spigot
Application
DWV
Fitting Pipe Size
1-1/2 in. x 1-1/2 in.
Body Material
ABS
Fitting Shape
Elbow
Brand
APPROVED SUPPLIER
For Pipe Outside Diameter
1 7/8 in
Color Family
Black
For Pipe Schedule
40
Connection Type
Socket, Spigot
For Pipe Size
1-1/2 in.
Fitting Connection (A) Gender
Male
Item
22-1/2 Degrees Street Elbow
Fitting Connection (A) Outside Diameter
1-7/8 in.
Mfr. Part Number
1WJF8
Fitting Connection (A) Pipe Size
1-1/2 in.
Package Quantity
1
Fitting Connection (A) Type
Spigot
Pipe Fitting Material
ABS
Fitting Connection (B) Gender
Female
Shipping Weight
.09 lb.
Fitting Connection (B) Outside Diameter
2-3/16 in.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection (B) Pipe Size
1-1/2 in.
Temperature Range
-20 Degrees to 140 Degrees F
Fitting Connection (B) Type
Socket
General
Fitting Side A Gender
Male
Fitting Side B Nominal Pipe Size
1 1/2 in
Fitting Side A Nominal Pipe Size
1 1/2 in
Fitting Side B Outside Diameter
2 3/16 in
Fitting Side A Outside Diameter
1 7/8 in
Fitting Side B Type
Socket
Fitting Side A Type
Spigot
Low Lead Compliance Level
Not Compliant
Fitting Side B Gender
Female
Temp. Range
-20 Degrees to 140 Degrees F

Product Description

Socket x spigot fittings connect with ABS (acrylonitrile butadiene styrene) pipe. These fittings include a socket (hub or slip) end that fits over a pipe and a spigot (also known as street) end that fits inside a socket. The spigot end is needed when a fitting connects to another fitting (not directly to a pipe). These fittings require glue or adhesive to seal the connection.

ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. The smooth interior walls of ABS pipe resist physical impact, chemical corrosion, and scaling. ABS pipe connects with pipe fittings to transport potable water, slurries, and chemicals in light commercial applications.
