Home All Products Material Handling Moving and Distribution Carts and Trucks Hand Trucks Convertible Hand Trucks SKU: 916919-9
Share
Print
MAGLINER

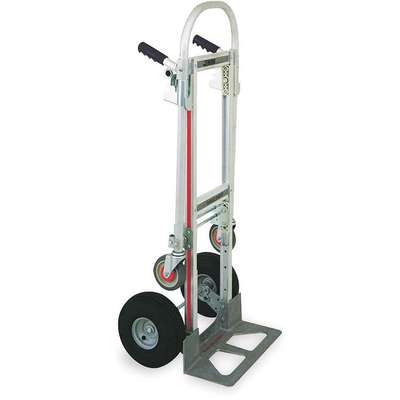

Magliner Convertible Hand Truck, 1000 lb./500 lb. Horixontal/Vertical Load Cap., Continuous Frame Dual Pin

Hover over image to magnify
Cnvrtbl Hnd Trck,1000 Lb.,51 x
PI_Asset_1028927
Cnvrtbl Hnd Trck,1000 Lb.,51 x
PI_Asset_1028927

#916919-9 | Pkg Qty: 1

$449.18 pkg | $449.18 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MAGLINER
Noseplate Width
18 in.
Caster Diameter
5 in.
Number of Casters
2
Caster Material
Polyurethane
Number of Wheels
2
Caster Type
Swivel
Overall Depth
47-1/2 in.
Caster Width
1-1/4 in.
Overall Height
51 in.
Color Family
Silver
Overall Length
47-1/2 in.
Folded Height
61 in.
Overall Width
21 in.
Folded Width
23 in.
Package Quantity
1
Hand Truck Handle Type
Continuous Frame Dual Pin
Shipping Weight
44 lb.
Hand Trucks Group
Convertible Hand Trucks
Vertical Load Capacity
500 lb.
Horizontal Load Capacity
1000 lb.
Wheel Bearings
Sealed
Item
Convertible Hand Truck
Wheel Diameter
10 in.
Material
Aluminum
Wheel Material
Steel
Mfr. Part Number
GMK16UA4
Wheel Type
Pneumatic
Noseplate Depth
7-1/2 in.
Wheel Width
3-1/2 in.
General
Axle Dia.
5/8 in
Includes Wheel Fenders
With Wheel Fenders
Axle-Mounted Wheel Bearings
Ball Bearing
Load Capacity as Hand Truck
500 lb
Axle-Mounted Wheel Dia.
10 in
Load Capacity as Platform Truck
1,000 lb
Axle-Mounted Wheel Type
Pneumatic
Non-Marking Casters/Wheels
Yes
Axle-Mounted Wheel Type/Material
Pneumatic Rubber
Nose Plate Depth
7 1/2 in
Axle-Mounted Wheel Width
3 1/2 in
Nose Plate Material
Aluminum
Axle-Mounted Wheel/Tread Material
Rubber
Nose Plate Profile
Beveled
Brake Type
No Caster Brake
Nose Plate Thickness
5/16 in
Caster Dia.
5 in
Nose Plate Type
Solid Straight
Caster Frame Material
Steel
Nose Plate Width
18 in
Caster Mounting Height
6 in
Nose Plate WxD
18 in x 7 1/2 in
Caster Stem Diameter
1 in
Operating Angles
90°
Caster Stem Length
2 1/2 in
Overall Depth as Hand Truck
19 in
Caster Wheel Dia.
5 in
Overall Height as Hand Truck
51 in
Caster Wheel Width
1 1/4 in
Overall HxWxD - Hand Truck
51 in x 20 1/2 in x 19 in
Caster/Wheel Configuration
(2) Swivel, (2) Axle-Mounted
Overall Width as Hand Truck
20 1/2 in
Caster/Wheel Mounting Location
Standard
Platform LxWxH
38 in x 12 in x 10 1/2 in
For Surface Type
All Surface Types
Platform Size
38 x 12 in
Frame Gauge
16 ga
Release Type
Hand Lever
Horizontal Load Cap.
1,000 lb
Stack Height
51"
Hub Position
Offset
Vertical Load
500 lb.
Includes Foot Assist
Without Foot Assist
Vertical Load Cap.
500 lb
Includes Lever Pushoff
Without Lever Pushoff

Product Description

Two-position aluminum convertible hand trucks weigh less than steel hand trucks and resist rusting when used in damp or wet environments. They can be used as an upright two-wheel hand truck or a horizontal four-wheel platform truck. These modular hand trucks allow users to replace parts of the hand trucks as they become worn or damaged, making them easier to maintain than non-modular hand trucks with a welded frame and nose plate.
