HARRINGTON

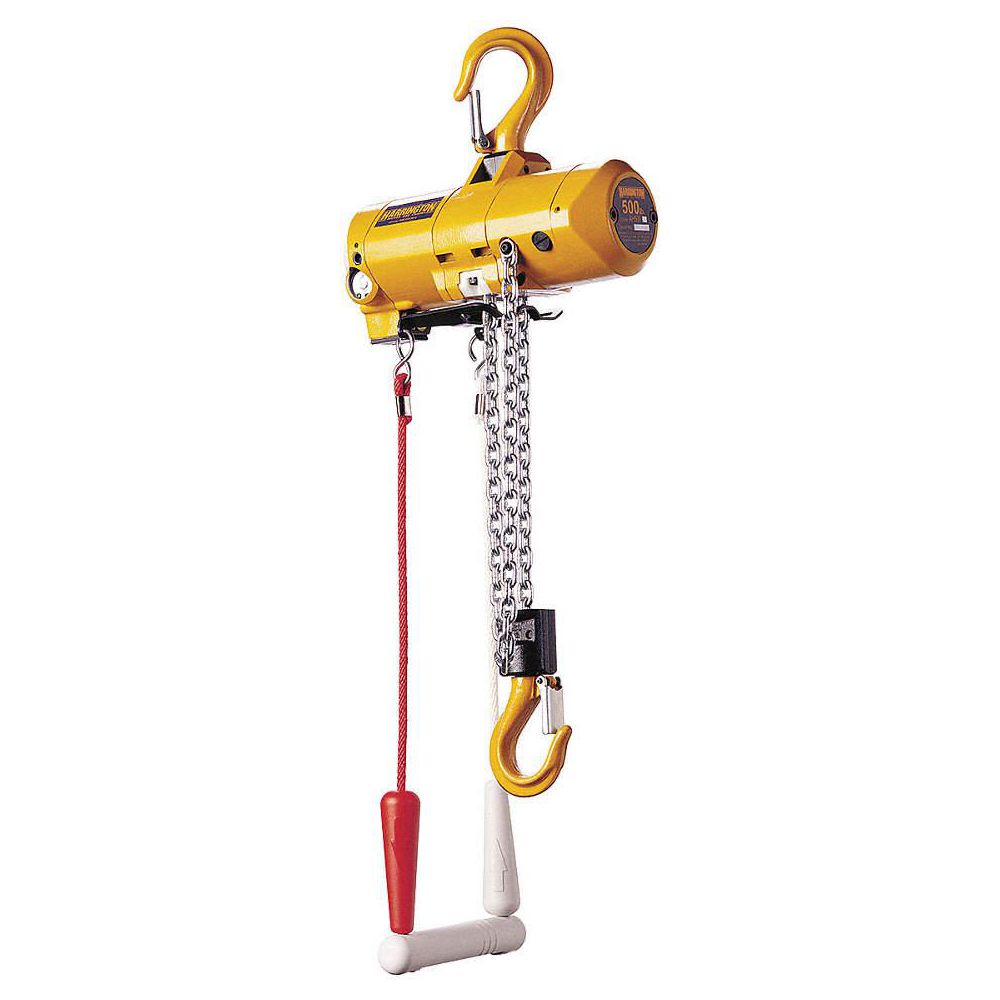

Air Chain Hoist, 500 lb. Load Capacity, 15 ft. Hoist Lift, Hook Mounted - No Trolley
Hover over image to magnify
#916907-9 | Pkg Qty: 1
$3,269.90 pkg | $3,269.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
29 scfm
Load Capacity
500 lb.
Brake
Self Adjusting
Mfr. Part Number
AH500C-15
Brand
HARRINGTON
Mfr. Warranty Length
1 yr.
Color Family
Yellow
Minimum Between Hooks
12 in.
Control
Pull Cord
Overall Length
9-11/16 in.
Finish
Acrylic Resin Paint
Overall Width
6 in.
Hoist Lift
15 ft.
Package Quantity
1
Hoist Mount
Hook Mounted - No Trolley
Reeving
1
Housing Length
9-11/16 in.
Series
Ah
Housing Width
4 in.
Shipping Weight
20.19 lb.
Item
Air Chain Hoist
Suspension Type
Hook
Lift Speed
32 fpm
General
Air Consumption (SCFM)
29
Min. Between Hooks
12 in
Air Pressure
90 psi
Min. Between Hooks (In.)
12
Air Pressure (PSI)
90
Noise Level
76 dB
Capacity (Lb.)
500
Number of Parts of Chain
1
Housing Length (In.)
9.7
Overall Length (In.)
9.7
Housing Width (In.)
4
Overall Width (In.)
6
Includes
Chain Container, Nickle Plated Load Chain
Standards
ANSI/ASME B30.17
Lift Speed (FPM)
32
Suspension
Hook
Product Description
250- to 6000-lb. Capacity Air Chain Hoists
- Low headroom Fine feathering control for precise positioning Self-adjusting disc brake system Continuous-duty cycle Nickel-plated load chain and chain container included Yellow acrylic resin paint
- AH Series hoists are compact and lightweight. TCS Series include external speed adjustment. TCR Series are designed for heavy load lifting with pilot air and spring-loaded vanes for ultimate load control. Feature built-in adjustable load limiter and limit switches.
- Meet ANSI/ASME B30.17 standards.
Item Barcode
Air Chain Hoist,500 Lb. Cap.,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5DZG2 | Air Chain Hoist,500 lb. |
 | UNSPSC CODES | 24101602 | |
 | VMRS (ATA) CODES | 053-006-009 | Air Chain Hoist,500 lb. |
