LIBERTY

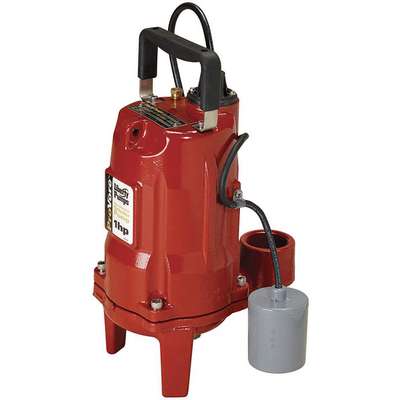

1 HP Grinder Pump, CSCR Motor, 50 ft. Max Head, Silicone Carbide Shaft Seal
Hover over image to magnify
#916907-5 | Pkg Qty: 1
$1,364.36 pkg | $1,364.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA, UL 778
Maximum Head
50 ft.
Amps
12 A
Maximum Liquid Temperature
140°F
Base Material
Cast Iron
Maximum Temperature (Deg. F)
140°
Bearing Type
Ball
Mfr. Part Number
PRG101A
Brand
LIBERTY
Mfr. Warranty Length
3 Yr.
Cord Length
10 ft.
Minimum Sump Pit Diameter
24 in.
Diameter
11
Motor RPM
3450
Discharge NPT
2 in. F
Motor Type
CSCR
Duty
Intermittent
Off Point
6-1/2
GPM of Water @ 10 Ft. of Head
42
On Point
13-1/2
GPM of Water @ 15 Ft. of Head
39
Package Quantity
1
GPM of Water @ 20 Ft. of Head
36
Phase
1
GPM of Water @ 25 Ft. of Head
32
Pump HP
1
GPM of Water @ 30 Ft. of Head
27
Pump Type
Automatic
GPM of Water @ 35 Ft. of Head
22
RPM
3450
GPM of Water @ 40 Ft. of Head
15
Shaft Material
Stainless Steel
GPM of Water @ 45 Ft. of Head
10
Shaft Seal
SIC
GPM of Water @ 5 Ft. of Head
44
Shaft Seal Material
Silicone Carbide
Handle
Yes
Shipping Weight
58 lb.
Height
17-3/4 in.
Switch Type
Wide Angle
Horsepower
1
Thermal Protection
Yes
Hz
60Hz
Type
Automatic
Impeller Material
Stainless Steel
Voltage
120 VAC
Input Phase AC
1
Warranty
3 Years
Item
Grinder Pump
General
Body Dia.
11 in
Max. Diameter Solids
2 in
Discharge Dia.
2 in
Min. Sump Pit Dia.
24 in
Discharge Gender
Female
Phase - Pumps
1
Discharge Standard
NPT
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
42 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 15 Ft. of Head
39 gpm
Standards
CSA, UL 778
Flow Rate @ 20 Ft. of Head
36 gpm
Switch Actuation
Tether Float
Flow Rate @ 40 Ft. of Head
15 gpm
Switch Electrical Connection
Piggyback
HP
1 hp
Product Description
These general purpose 110 to 120V sewage grinder pumps shred large particles into small fragments so the waste can be pumped into a sewage system. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Documents
Item Barcode
Grinder Pump,Automatic,115V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 21TN69 | Grinder Pump, Automatic, |
 | UNSPSC CODES | 40151517 | |
 | VMRS (ATA) CODES | 053-006-009 | Grinder Pump, Automatic, |
