SOTERA

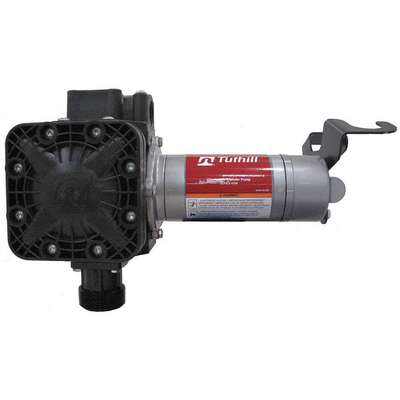

1/4HP Polypropylene Glass Filled Polypropylene Electric Operated Drum Pump, 13 GPM
Hover over image to magnify
#916873-7 | Pkg Qty: 1
$1,050.81 pkg | $1,050.81 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adapter Material
Polypropylene
Maximum Viscosity
3000 CPS
Brand
SOTERA
Metered
No
DEF Compatible
Yes
Mfr. Part Number
SS460B
Discharge Tube Outlet ID Size
1"
Mfr. Warranty Length
1 yr.
Discharge Tubing Material
EPDM
Motor Enclosure
TENV
Duty Cycle
Intermittent
Motor RPM
3,450 RPM
Food Grade
No
Motor Type
Capacitor Start
For Use On
Chemicals
Outlet Size
1"
Full Load Amps
2-1/2
Overall Length
21 in.
GPM
13
Package Quantity
1
Horsepower
1/4
Phase
1
Hose Length
12 ft.
Piston
Santoprene
Hose Material
EPDM
Piston Material
Santoprene
Housing Material
Glass Filled Polypropylene
Power Source
Electric
Hz
60
Seal Material
Fluorocarbon
Inlet Size
1" NPT
Shipping Weight
30.05 lb.
Item
Electric Operated Drum Pump
Suction Tube Length
39 in.
Maximum Air Inlet PSI
15
Suction Tube Type
Polypropylene
Maximum GPM for Oil
12
Type
Diaphragm
Maximum GPM for Water
15
Variable Speed
No
Maximum Head
34 ft.
Voltage
115 VAC
Maximum Liquid Temperature
130°F
Wetted Materials
Fluorocarbon, Polypropylene, Santoprene, Stainless Steel
Maximum Pressure
15 psi
pH Range
3.6 to 11.9
General
Adapter Connection Type
MNPT
Includes Discharge Hose
Yes
Application
Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics
Includes Nozzle
Yes
Bung Connection Dia.
2 in
Includes Suction Tube
Yes
Compatible Chemicals
Fertilizers, Fungicides, Herbicides, Motor Oil
Max. Flow Rate
13 gpm
Discharge Connection Type
NPT
Max. Fluid Temp.
130 Degrees F
Discharge Tube Outlet ID
3/4 in
Max. Head - Pumps
34 ft
Discharge Tube Outlet OD
1 in
Max. Outlet Pressure
15 psi
For Container Size
55 gal
Noise Level
77 db
For Container Type
Drum
Nominal Voltage
110V AC
For Media Type
Fertilizers, Fungicides, Herbicides, Motor Oil
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formic Acid, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
For Use With
Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents
Nozzle Operation
Manual
Frequency (Hz)
60
Number of Phases
1
Hose Cover Material
EPDM
Pump Connection ID
1 in
Hose Inside Dia.
3/4 in
Pump Connection OD
1 1/4 in
Hose Outside Dia.
1 in
Pump Connection Type
FNPT
Hose Tube Material
EPDM
Pump Package Type
Unmetered Dispensing with Manual Shut-Off
Housing Material - Pumps
Polypropylene
Rated Voltage
115V AC
Includes
Shutoff Ball Valve
Runs Dry
Yes
Includes Bung Adapter
Yes
Product Description
Agricultural electric drum pumps withstand contact with agricultural products such as fertilizers, herbicides, pesticides, and fungicides. They typically run on DC voltage so they can be powered by farm equipment batteries for use in the field or remote locations where an electrical outlet is not available. They're commonly used when dispensing, transferring, and applying large amounts of agricultural chemicals in farming, gardening, and landscaping applications.
Item Barcode
Drum Pump,115VAC,1/4 Hp,60 Hz
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6XGW5 | Drum Pump, 115VAC,1/4 |
 | UNSPSC CODES | 40151529 | |
 | VMRS (ATA) CODES | 053-006-009 | Drum Pump, 115VAC,1/4 |
