BUSSMANN

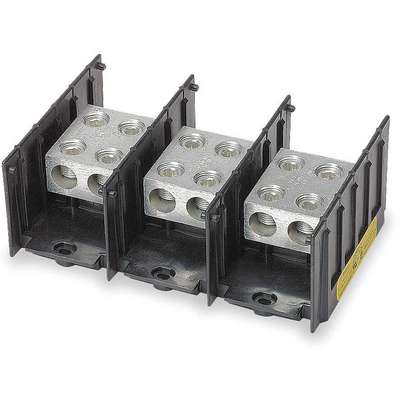

Bussmann Power Distribution Block, 620 Max. Amps, Number of Poles: 3
Hover over image to magnify
#916842-7 | Pkg Qty: 1
$235.94 pkg | $235.94 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
620 A
Power Distribution Block Design
Open
Brand
BUSSMANN
Primary Connections/Pole
2
Depth
2.93 in.
Primary Wire Range
4 AWG to 350 MCM
Item
Power Distribution Block
Secondary Connection/Pole
2
Length
5-1/2 in.
Secondary Wire Range
4 AWG to 350 MCM
Maximum Amps
620
Shipping Weight
2.7 lb.
Mfr. Part Number
16500-3
Voltage Rating
600 VAC/DC
Number of Poles
3
Width
8.48 in.
Package Quantity
1
General
For Conductor Material
Aluminum, Copper
Line Side Wire Size Range
6 AWG – 350 kcmil
For Line Aluminum Wire Size - Maximum
350 kcmil
Load Connections/Pole
2
For Line Aluminum Wire Size - Minimum
4 AWG
Load Side Connection Type
Lug
For Line Copper Wire Size - Maximum
350 kcmil
Load Side Wire Range
6 AWG – 350 kcmil
For Line Copper Wire Size - Minimum
6 AWG
Maximum Current - Aluminum Conductor
620 A
For Load Aluminum Wire Size - Maximum
350 kcmil
Maximum Current - Copper Conductor
620 A
For Load Aluminum Wire Size - Minimum
4 AWG
RoHS Compliant
Yes
For Load Copper Wire Size - Maximum
350 kcmil
Standards
UL 1059, CSA Class 6228-01
For Load Copper Wire Size - Minimum
6 AWG
Terminal Material
Aluminum
Line Connections/Pole
2
UL 94 Flammability Rating
V-0
Line Side Connection Type
Lug
Product Description
This efficient aluminum block splices cables or splits primary power into a wide range of secondary circuits and provides a fixed tap-off point. It accepts aluminum or copper wire, and saves splicing and taping time for contractor rework.
Item Barcode
Pwr Dist Block,620A,3P,4AWG-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4XK20 | Pwr Dist Block,620A, |
 | UNSPSC CODES | 39121410 | |
 | VMRS (ATA) CODES | 053-006-009 | Pwr Dist Block,620A, |
