CARLING TECHNOLOGIES

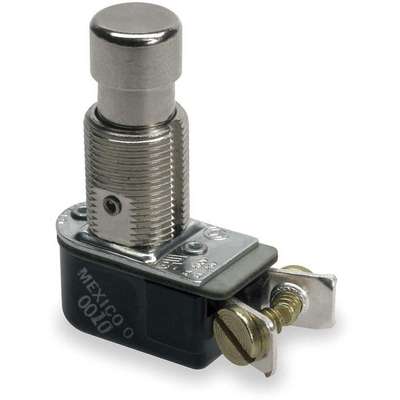

Carling Technologies SPST Miniature Push Button Switch, On/Off with Screw Terminals
Hover over image to magnify
#916823-8 | Pkg Qty: 1
$10.36 pkg | $10.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
6 A @ 125 VAC, 3 A @ 250 VAC
Mounting Hole
1/2 in. dia.
Action
Maintained
Mounting Type
Panel
Amperage
6 A
Number of Connections
2
Brand
CARLING TECHNOLOGIES
Operating Temperature Range
3 deg. F to 185 deg. F
Contact Form
SPST
Package Quantity
1
Contact Rating
3 A @ 250 VAC
Shipping Weight
.04 lb.
Contact Rating @ 125 V (Amps)
6
Stem Diameter/Thread Size
0.524 x 15/32-32UNS-2A
Contact Rating @ 250 V (Amps)
3
Stem Length
0.562 in.
Contact Type
SPST
Switch Function
On/Off
Item
Miniature Push Button Switch
Terminals
Screw
Mfr. Part Number
110-SP
Type
Maintained
Mounting Dimension
1/2 in. dia.
General
Operating Temp. Range
32° to 185°F
Stem Dia. and Thread Size
0.524 x 15/32-32UNS-2A
Product Description
This panel-mount switch is designed for use with shallow back-panel applications including electric motors, appliances, power tools, light fixtures, and instruments.
