SHURFLO

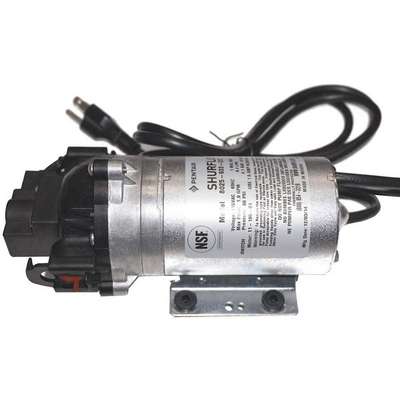

115 VAC Booster Pump, 1-Phase, 87 PSI Max. Pressure, 3/8" Barb Inlet Size
Hover over image to magnify
#916810-8 | Pkg Qty: 1
$410.23 pkg | $410.23 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Listed
Maximum Pressure
87 psi
Amps
0.5 A
Maximum Working Pressure
87
Brand
SHURFLO
Mfr. Part Number
8025-933-237
Compliance
NSF
Mfr. Warranty Length
1 yr.
GPM @ 20 PSI
1.42
Motor Ambient Temperature Rating
34° to 170°F
GPM @ 40 PSI
1.26
Motor Enclosure
Stainless Steel
GPM @ 60 PSI
1.13
Number of Stages
1
Height
4 in.
Outlet
Quick Connection
Horsepower
1/3
Outlet Size
3/8 in. Barb
Housing Material
Stainless Steel
Package Quantity
1
Hz
60
Phase
1
Impeller Material
Santoprene
Plug/Connector Type
Plug
Impeller Type
Diaphragm
Shipping Weight
5.4 lb.
Inlet
Quick Connection
Stages
1
Item
Booster Pump
Suction Lift
8 ft.
Length
8 in.
Type
Booster Pump
Maximum Case Pressure
87 psi
Voltage
115 VAC
Maximum Diameter Solids
Clear Water
Wetted Materials
NSF
Maximum Fluid Viscosity
Clear Water
Width
4 in.
Maximum Inlet Pressure
30
General
Application
Replacement Pump
Max. Pressure - Pumps
87 psi
Booster Pump Type
Booster Pump
Minimum Inlet Flow Required
0
For Use With
Mfr. No. 804-001
Motor Ambient Temp. Rating
34 Degrees to 170 Degrees F
HP - Pumps
1/3 hp
Number of Stages - Pumps
1
Housing Material - Pumps
Stainless Steel
Outlet Size - Pumps
3/8 in Barb
Includes
Cord, Pump
Phase - Pumps
1
Inlet Size - Pumps
3/8 in Barb
Pressure Switch Setting
Factory Set
Max. Dia. Solids
Clear Water
Voltage - Pumps
115V AC
Product Description
This Shurflo® booster pump can be used to help increase water pressure in municipal or home water systems.
