APOLLO

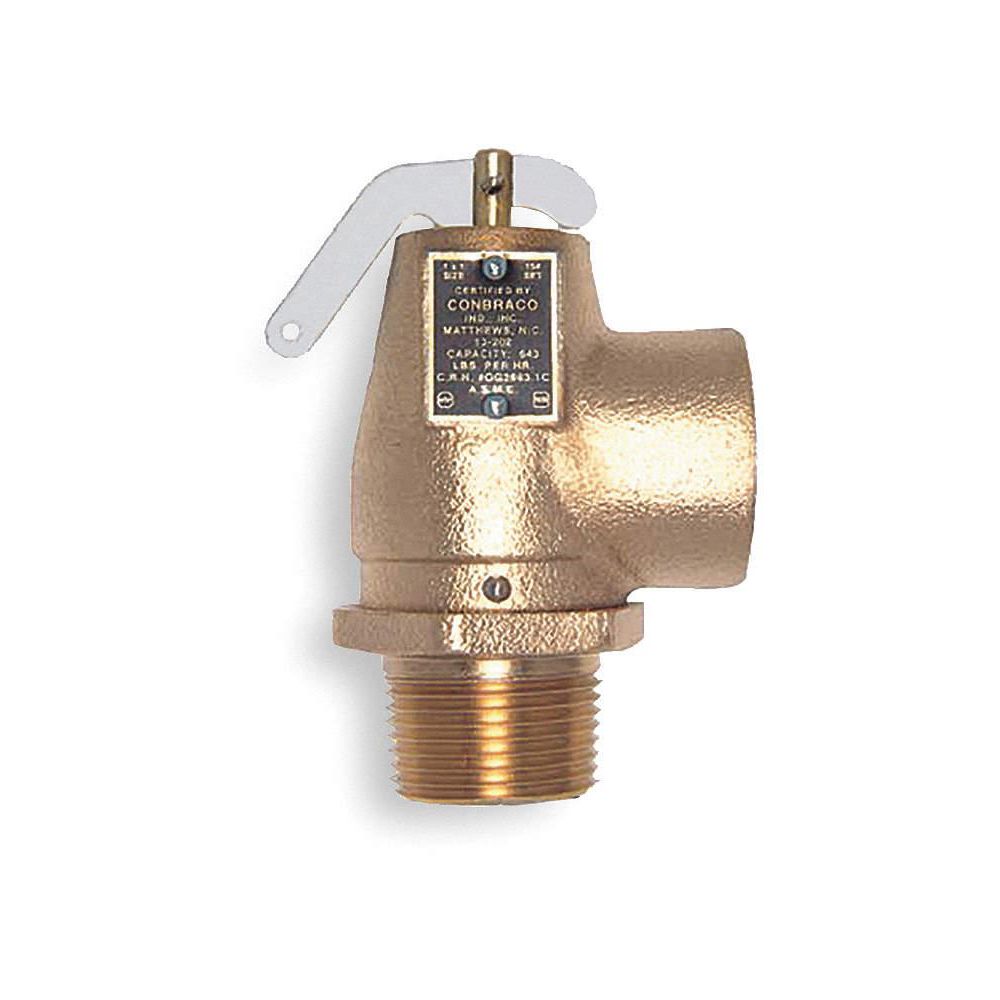

Cast Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type

Hover over image to magnify
Safety Relief Valve,1-1/2 x 2
PI_Asset_3758534
Safety Relief Valve,1-1/2 x 2
PI_Asset_3758534
Double tap image to magnify
Safety Relief Valve,1-1/2 x 2
11900A_d__25XJ_v1
Safety Relief Valve,1-1/2 x 2
11900A_d__25XJ_v1

#916802-1Pkg Qty: 1

$232.04 pkg | $232.04 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Apr 03.
|

Technical Specifications

Key Specifications
Body Material
Cast Bronze
Outlet Size
2 in.
Brand
APOLLO
Outlet Type
FNPT
Connection Type
MNPT x FNPT
Overall Height
5-1/4 in.
Inlet Size
1-1/2 in.
Overall Length
4 in.
Inlet Type
MNPT
Package Quantity
1
Item
Safety Relief Valve
Shipping Weight
3.24 lb.
Mfr. Part Number
13214B15
Temperature Range (Deg. F)
Up to 250 deg. F
General
Application
Low Pressure Steam Heating and Supply Boilers
Standards
ASME Section IV, CRN
Disc Material
EPDM
Test Lever
Yes

Product Description

Low-Pressure Steam Heating Boiler Safety Relief Valves

  • Max. temp.: 250°F
  • All have top guiding seals and positive condensate drainage for extended service life. Cast-bronze construction with raised EPDM discs and seats; stainless steel springs. MNPT x FNPT connections. Part Numbers: 3EEY1, 3EEY6, and 3EEY7 have MNPT bottom connection and top outlet discharge.
  • Meet CRN standards.

Item Barcode

9168021
Safety Relief Valve,1-1/2 x 2
