CARLING TECHNOLOGIES

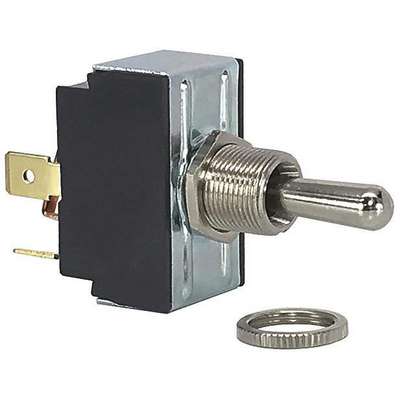

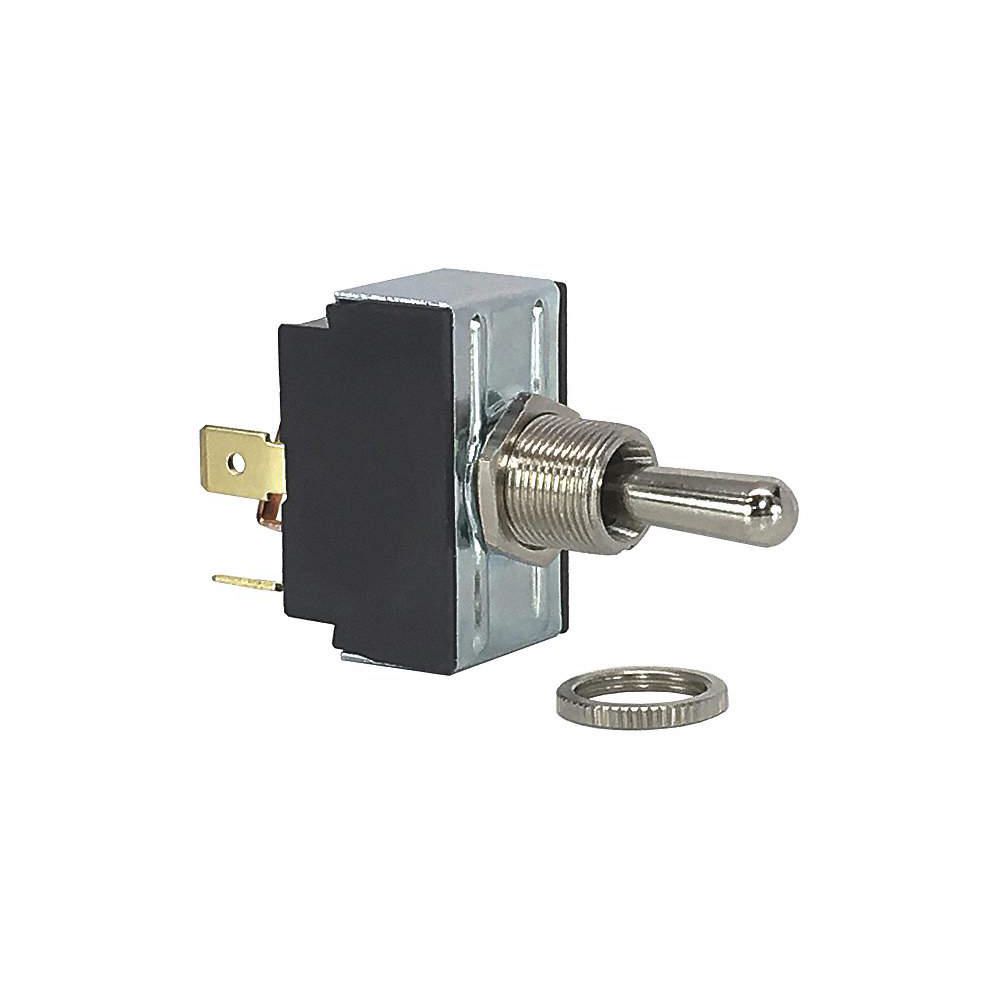

Carling Technologies Reversing Toggle Switch, Number of Connections: 4, Switch Function: Momentary On/Off/Momentary On
Hover over image to magnify
#916795-8 | Pkg Qty: 1
$9.04 pkg | $9.04 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 125 VAC, 10 A @ 250 VAC
Mounting Type
Threaded Bushing
Actuator Length
0.68 in.
Number of Connections
4
Bat Toggle Length
0.687
Package Quantity
1
Brand
CARLING TECHNOLOGIES
Shipping Weight
.4 lb.
Color Family
Silver
Stem Color
Silver
Contact Form
DPDT
Stem Diameter
0.406
Contact Rating @ 125 V (Amps)
15
Stem Diameter/Thread Size
0.406 in.
Contact Rating @ 250 V (Amps)
10
Stem Length
0.47 in.
Horsepower
2022-01-02
Switch Function
Momentary On/Off/Momentary On
Item
Reversing Toggle Switch
Terminals
Quick Connect
Mfr. Part Number
6GO53-73/TABS
Type
Momentary
Mounting Hole
0.50 in. dia.
General
HP
1/2 hp
Standards
UL Recognized/CSA
Special Features
Seal In Bushing
Stem Dia. and Thread Size
0.406 in
Product Description
The CARLING TECHNOLOGIES toggle switch is designed for use in electric motors, appliances, power tools, light fixtures, and instruments. C-UL Recognized. CSA Certified.
Expertly Selected Product Pairings
Item Barcode
Toggle Switch,Dpdt,10A @ 250V,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 10C580 | Toggle Switch,DPDT, |
 | UNSPSC CODES | 39122211 | |
 | VMRS (ATA) CODES | 034-004-081 | Toggle Switch,DPDT, |
