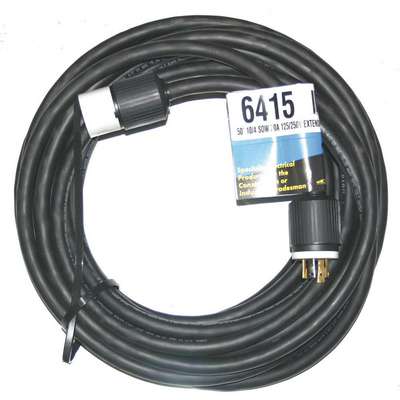

CEP 50 ft. Indoor, Outdoor Extension Cord; Max Amps: 30.0, Number of Outlets: 1, Black

Hover over image to magnify
Extension Cord Set,50 Ft.,10/4,
PI_Asset_1353387
Extension Cord Set,50 Ft.,10/4,
PI_Asset_1353387

#916769-1 | Pkg Qty: 1

$405.16 pkg | $405.16 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CEP

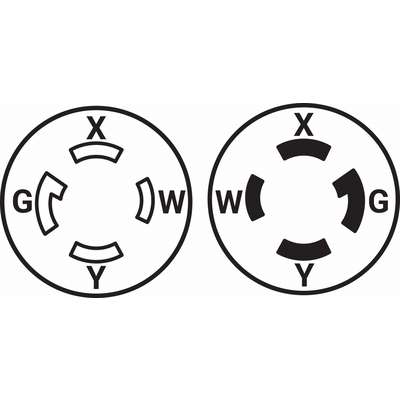

NEMA Plug Configuration
L14-30P
Cord Ending Type
Single Connector
NEMA Receptacle Configuration
L14-30R
Cord Length
50 ft.
Nominal Outside Diameter
0.72 in.
Cord Shape
Round
Number of Conductors
4
Description/Special Features
Extension
Number of Outlets
1
Extension Cord Length
50 ft.
Package Quantity
1
Extension Cord Outlet NEMA Configuration
L14-30
Plug Configuration
Straight, No Swivel
Extension Cord Plug NEMA Configuration
L14-30
Plug Style
Straight
Extension Cords Group
45 to 50 ft.
Plug Type
Straight, No Swivel
Gauge/Conductor
10/4
Power Indicator
No
Indoor/Outdoor
Indoor/Outdoor
Receptacle Configuration
NEMA L14-30R
Item
Extension Cord
Shape
Round
Jacket Color Family
Black
Shipping Weight
19.4 lb.
Jacket Material
Rubber
Standards
UL
Lighted End
Yes
Temperature Range (Deg. F)
-40 to 194 deg. F
Maximum Amps
30 A
Trade Designation
SOW
Mfr. Part Number
6415
Voltage
125/250 VAC
NEC Cord Designation
SOW
Wire Size
10 AWG
General
Cord Shape
Round

Product Description

Outdoor extension cords with a single outlet consist of flexible electrical cable with a plug at one end and a single receptacle at the other end. They are commonly used in outdoor applications to provide power where the power source is located some distance away from the device, such as with landscaping equipment. These cords have a durable jacket that resists abrasion and harsh weather conditions, making them more robust for outdoor applications than indoor extension cords.

Extension cords are a length of flexible electrical cable used to bring power to a device located up to 100 ft. away. They are typically used when a device's cord is too short to reach a power source, such as an electrical outlet, or where outlets may be scarce. They have a two- or three-prong plug at one end that connects to the power source and a molded outlet at the other end that devices plug into. Extension cords with a single outlet have a single receptacle, while cords with multiple outlets have two or more receptacles. In general, the more power needed by a device, the thicker the extension cord (or lower the gauge) needs to be to support the electrical current flowing through the cord. Extension cords are commonly used to provide temporary power in a wide range of indoor and outdoor applications.
