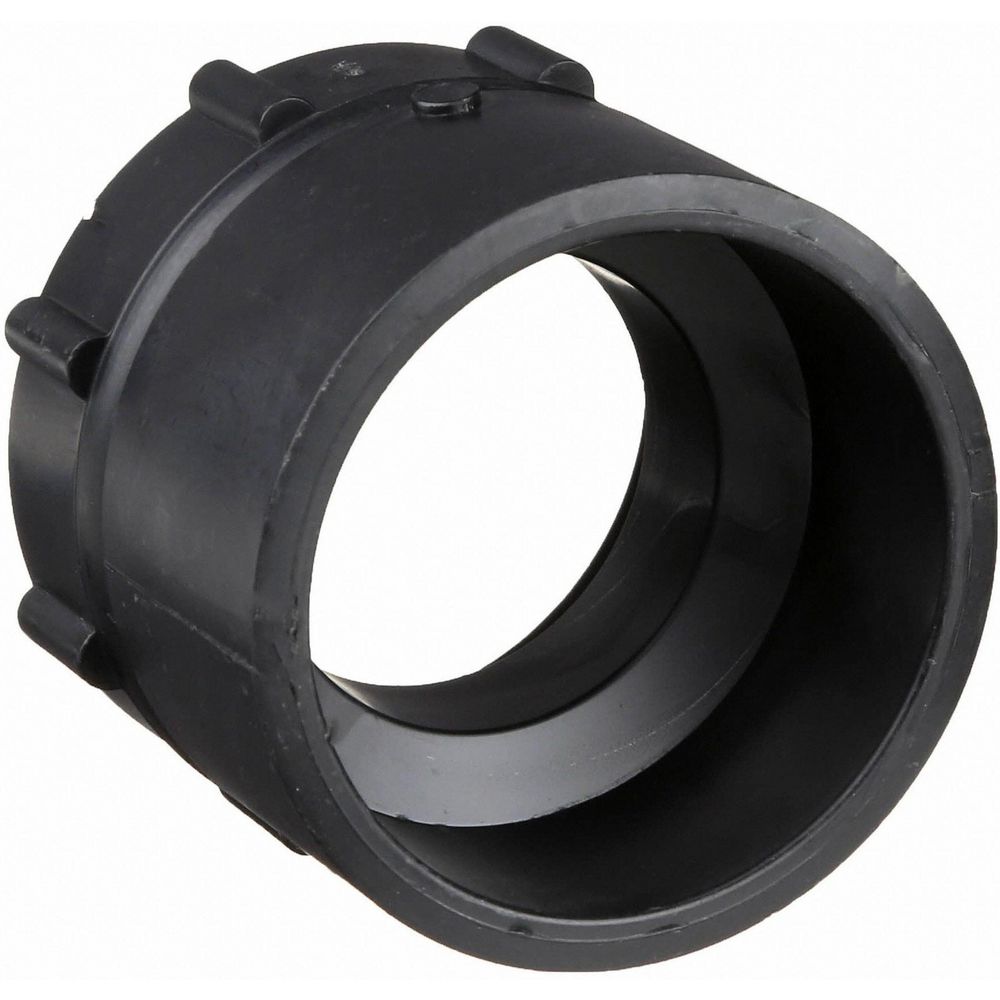

Female Adapter: 1 1/2 in x 1 1/2 in Fitting Pipe Size, Female Socket x Female NPT, Black

Hover over image to magnify
Swivel Plug Adapter,1-1/2 In
PI_Asset_928633
Swivel Plug Adapter,1-1/2 In
PI_Asset_928633

#916728-1 | Pkg Qty: 1

$5.42 pkg | $5.42 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
DWV
Fitting Connection Type
Hub x NPSM
Body Material
ABS
Fitting Pipe Size
1-1/2 in. x 1-1/2 in.
Brand
APPROVED SUPPLIER
Fitting Shape
Adapter
Color Family
Black
For Pipe Outside Diameter
1-7/8 in.
Connection Type
Socket, Threaded
For Pipe Schedule
40
Fitting Connection (A) Gender
Female
Item
Female Adapter
Fitting Connection (A) Outside Diameter
2-3/16 in.
Mfr. Part Number
1WJN6
Fitting Connection (A) Pipe Size
1-1/2 in.
Package Quantity
1
Fitting Connection (A) Type
Socket
Pipe Fitting Material
ABS
Fitting Connection (B) Gender
Female
Pipe Size
1-1/2 in.
Fitting Connection (B) Outside Diameter
1-7/8 in.
Shipping Weight
.09 lb.
Fitting Connection (B) Pipe Size
1-1/2 in.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection (B) Type
NPT
Temperature Range
-20 Degrees to 140 Degrees F
General
Fitting Side A Gender
Female
Fitting Side B Outside Diameter
1 7/8 in
Fitting Side A Nominal Pipe Size
1 1/2 in
Fitting Side B Pipe Threading
11.5
Fitting Side A Outside Diameter
2 3/16 in
Fitting Side B Type
NPT
Fitting Side A Type
Socket
Low Lead Compliance Level
Not Compliant
Fitting Side B Gender
Female
Temp. Range
-20 Degrees to 140 Degrees F
Fitting Side B Nominal Pipe Size
1 1/2 in

Product Description

Threaded x spigot fittings connect with ABS (acrylonitrile butadiene styrene) pipe. These fittings include at least one threaded end and one spigot (or street) end. Female threads are on the inside of a fitting. Male threads are on the outside of a fitting and screw into the female threads. Threaded connections use PTFE tape to secure seal. Spigot fittings connect to another fitting (not directly to a pipe), and require glue or adhesive to secure the connection.

ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. The smooth interior walls of ABS pipe resist physical impact, chemical corrosion, and scaling. ABS pipe connects with pipe fittings to transport potable water, slurries, and chemicals in light commercial applications.
