SNYDER INDUSTRIES

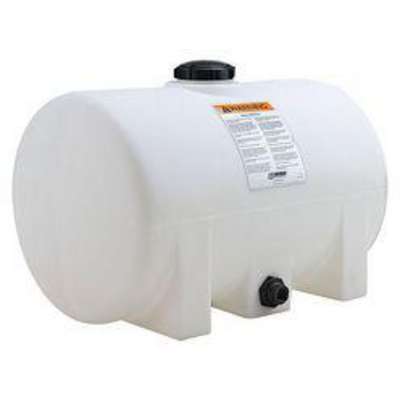

Storage Tank: Single Wall, Horizontal, 30 gal, Closed Top, 1/4 in Wall Thick (in)
Hover over image to magnify
#916653-3 | Pkg Qty: 1
$622.96 pkg | $622.96 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SNYDER INDUSTRIES
Mfr. Part Number
1080000N95005
Connection
1 FNPT
Mfr. Warranty Length
3 yr.
Construction Material
High Density Linear Polyethylene
Package Quantity
1
Diameter
23
Shipping Weight
11.74 lb.
Fill Opening Diameter
6
Tank (Gal.)
30
Fitting Type
Bulkhead
Tank (L)
114
Item
Storage Tank
Tank Style
Horizontal Leg
Maximum Temperature (Deg. F)
130°
Type
Closed Top
Maximum Working Pressure
Atmospheric
Wall Thickness
1/4
General
Drain Connection Gender
Female
Overall Depth
20 in
Drain Connection Type
TxT
Overall Dimensions
26 in H x 19 1/2 in W x 20 in L x 23 in Dia.
Drain Opening Diameter
1 in
Overall HxDia.
26 in x 23 in
Features
Molded-in Gallon/Liter Indicators
Overall LxDia.
20 in x 19 1/2 in / 23 in
Fill Cap Diameter
6 in
Tank Material Thickness
1/4 in
Graduation Mark Increments
5 gal
Tank Opening Type
Closed Top
Graduations (Gal.)
5
Tank Orientation
Horizontal
Graduations (L.)
19
Tank Wall Style
Single Wall
Liquid Storage Capacity
30 gal
Product Description
Horizontal-Leg Tanks
- Used in municipal, transportation, agricultural, and construction markets to carry compatible liquids to remote locations.
- Horizontal Liquid Storage Tanks
- UV resistant Max. temp.: 130°F
- NSF 61 and FDA compliant (except tanks with fittings).
Expertly Selected Product Pairings
Item Barcode
Storage Tank, Horizontal Leg,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2ZRF6 | Storage Tank, Horizontal |
 | UNSPSC CODES | 24111803 | |
 | VMRS (ATA) CODES | 053-006-009 | Storage Tank, Horizontal |
