FILL-RITE

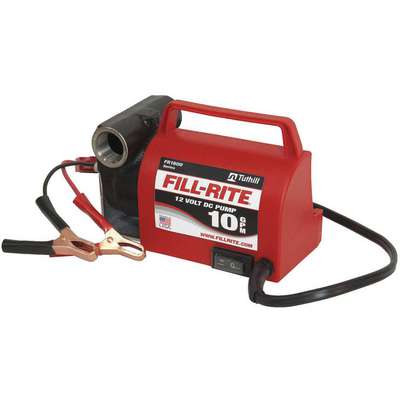

Fuel Transfer Pump: 12 VDC, 10 GPM, Cast Iron, 1/5 HP
Hover over image to magnify
#916647-7 | Pkg Qty: 1
$225.91 pkg | $225.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Type
Adjustable
Outside Height
5 in.
Brand
FILL-RITE
Overall Length
7 in.
Bypass Valve
Yes
Overall Width
3-3/4 in.
Compatible Fluids
Antifreeze, Diesel
Pack Quantity
1
Duty Cycle
30 min.
Power Cord Length
6-1/2 ft.
GPM
10 gpm
Pressure Range
12 psi
Horsepower
1/5
Pump Design
Rotary Vane
Housing Material
Cast Iron
Pump Mount Size
2 in.
Inlet Size
3/4 in
RPM
4000
Item
Fuel Transfer Pump
Seal Material
HNBR
Maximum Viscosity
50 SSU
Seal Type
Mechanical
Metered
No
Self-Priming
Yes
Mfr. Part Number
FR1612
Shipping Weight
8.8 lb.
Mfr. Warranty Length
1 yr
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Outlet Size
3/4 in
Voltage
12 VDC
General
Adapter Connection Type
F Hose Barb
Meter
Not Included
Adapter Material
Aluminum
Min. Fluid Temp.
-40 Degrees F
Agency Compliance
CE
Motor Enclosure
Non-Explosion Proof
Compatible Chemicals
Anti-Freeze, Diesel
Motor HP
1/5 hp
Cord Length
6 1/2 ft
Motor RPM
4,000 RPM
Discharge Connection Type
Hose Barb
Motor Type
Permanent Magnet
Discharge Hose Size
Not Included
Mount Type
Foot
For Container Size
100 gal
Nominal Voltage
12V DC
For Media Type
Anti-Freeze, Diesel
Nozzle Type
Not Included
Full Load Amps
17.0 A
Overall Height
5 in
Height Above Container
5 in
Power Source
Electric
Housing Material - Pumps
Cast Iron
Pump Kit Type
Pump Only
Includes
Installation Components
Pump Package Type
Basic Pump with Discharge Hose
Kit Components
No Meter No Hose No Nozzle No Suction Tube
Rated Voltage
12V DC
Max. Flow Rate
10 gpm
Runs Dry
Yes
Max. Fluid Temp.
105 Degrees F
Spout Material
Aluminum
Max. Head - Pumps
36 ft
Suction Tube OD
3/4 in
Max. Head Pressure
50 psi
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Max. Outlet Pressure
16 psi
Product Description
This FILL-RITE fuel transfer pump is a positive displacement, rotary vane design with an electrical fuse for safe operation. Pump is not for use with gasoline or alcohol, or in hazardous locations.
