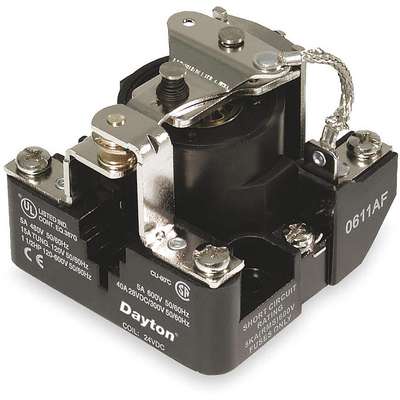

Dayton 120VAC, 5-Pin Surface Open Power Relay; Electrical Connection: Screw

Hover over image to magnify
Open Power Relay,5 Pin,120VAC,
PI_Asset_1368459
Open Power Relay,5 Pin,120VAC,
PI_Asset_1368459
Dayton 120VAC, 5-Pin Surface Open Power Relay; Electrical Connection: Screw Video
Double tap image to magnify
Open Power Relay,5 Pin,120VAC,
5Z542_SS01_R01_C23
Open Power Relay,5 Pin,120VAC,
5Z542_SS01_R01_C23
qejmPGe6wk4

#916603-3Pkg Qty: 1

$97.52 pkg | $97.52 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 17.
|

Technical Specifications

Key Specifications
AC Contact Rating
40 A @ 300 V
Input Power Consumption
10.0 VA
Body Depth
2-1/2 in.
Item
Open Power Relay
Body Height
2.3 in.
Mfr. Part Number
5Z542
Body Width
2-1/2 in.
Mounting
Surface
Brand
DAYTON
Number of Pins
5
Coil Rating
Not Rated
Number of Poles
1
Coil Volts
120 VAC
Overall Height
2.3 in.
Contact Form
SPDT
Package Quantity
1
Contact Material
Silver Cadmium Oxide
Pins
5
Contact Rating
40 A @ 300 VAC, 30 A @ 28 VDC
Power Relay Style
Open Power Relay
DC Contact Rating
30 A @ 28 V
Relay Power Consumption
10.0 VA
Dimensions
2.30 in.H, 2.50 in.W, 2.50 in.D
Resistive Contact Amp Rating
40A @ 300VAC, 30A @ 28VDC
Electrical Connection
Screw
Shipping Weight
.25 lb.
HP @ 120 V
2002-01-01
Type
Power, Open Style
HP @ 240 V
Not Rated
General
AC Contact Rating - Relay
40A @ 300V
HP @ 120V
1 1/2
Body Depth - Relay
2.5 in
Mounting - Power Relay
Surface
Body Height - Relay
2.3 in
Mounting - Relay
Surface
Body Width - Relay
2.5 in
Number of Pins - Relay
5
Contact Form - Relay
SPDT
Overall Height - Relay
2.3 in
DC Contact Rating - Relay
30A @ 28V
Power Consumption - Relay
10.0 VA
Electrical Connection - Power Relay
Screw
Standards
E40944

Product Description

The Dayton Power Relay is suitable for switching motor loads in applications such as elevators, machine tools, air handling, and HVAC equipment.

  • Screw-head terminals
  • Silver alloy, self-wiping contacts
  • Molded thermoset plastic base
