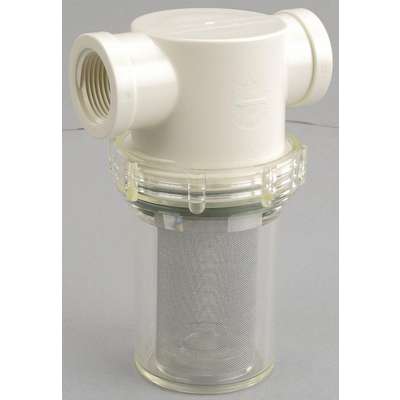

Inline Strainer: Nylon, 3/4 in, NPT, 48 mesh, 100 psi @ 125°F, 5 3/8 in Ht, 3 5/8 in Lg

Hover over image to magnify
Line Strainer, 3/4 In Fnpt
PI_Asset_1366571
Line Strainer, 3/4 In Fnpt
PI_Asset_1366571

#916558-3 | Pkg Qty: 1

$48.75 pkg | $48.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Length
3-5/8 in.
Color Family
White
Material
Nylon/Polyamide
Connection
FNPT
Maximum Pressure
100 psi @ 125°F
Diameter
3 in.
Mfr. Part Number
5733390
Flow Rate
7 gpm
Package Quantity
1
Height
5-3/8 in.
Screen Material
304 Stainless Steel
Item
T-Line Strainer
Shipping Weight
.4 lb.
General
Connection Gender
Female
Outgoing Tube Size
3/4 in
Includes Screen
Yes
Screen Area
17.33 sq in
Incoming Tube Size
3/4 in
Strainer Connection Type
NPT (National Pipe Thread) Threaded Connection
Material Grade
304
Strainer Type
Mesh
Maximum Pressure at 100 deg F
100 psi @ 125 Degrees F

Product Description

Economical solution for cost effective filtering and straining this Approved Supplier T-line strainer is ideal for use use as drinking water prefilters and in agricultural sprayers, floor scrubbers, pressure washers, medical devices, and car wash applications. The included 304 micron stainless steel filter screens can be easily cleaned or replaced by removing the bowl; no need to remove the entire strainer from the line.
