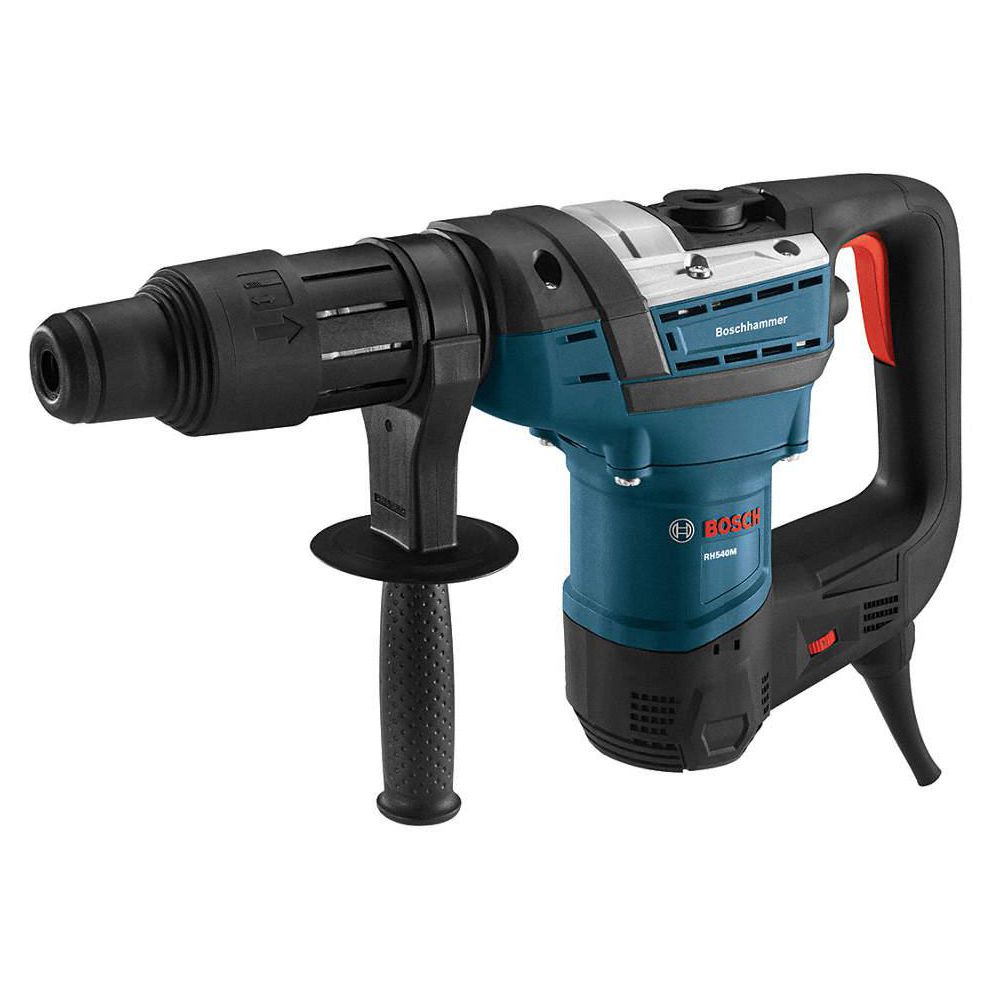

Bosch RH540M SDS Max Rotary Hammer Kit, 12.0 Amps, 1500 to 2900 Blows per Minute, 120V

Hover over image to magnify
SDS Max Combination Hammer,12A
PI_Asset_975657
PI_Asset_975658
PI_Asset_975659
PI_Asset_975660
PI_Asset_975661
PI_Asset_975662
PI_Asset_975663
PI_Asset_975664
PI_Asset_975665
SDS Max Combination Hammer,12A
PI_Asset_975657
PI_Asset_975658
PI_Asset_975659
PI_Asset_975660
PI_Asset_975661
PI_Asset_975662
PI_Asset_975663
PI_Asset_975664
PI_Asset_975665

#916544-3 | Pkg Qty: 1

$667.25 pkg | $667.25 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps @ 120 V
12
Package Quantity
1
Brand
BOSCH
Reversing
Yes
Corded/Cordless
Corded
Rotary Hammer Chuck Type
SDS Max
Item
Rotary Hammer Kit
Shipping Weight
36.6 lb.
Mfr. Part Number
RH540M
Tool Length
19 in.
General
Anti-Kickback Clutch
Yes
Includes
Auxiliary Handle, Carrying Case, Grease Tube
Auxiliary Handle Positions
Continuous
Maximum Blows per Minute
2,900 bpm
Chuck Style
SDS-Max
Minimum Blows per Minute
1,500 bpm
Core Bit Capacity in Concrete
4 in
Modes of Operation
Hammer and Rotate, Hammer Only
Drill Chuck Type
Keyless
Number of Chisel Locking Positions
12
Drilling Capacity in Concrete
1 9/16 in
Solid Bit Capacity in Concrete
1 9/16 in
Features
Innovative Service Modules, Integral clutch
Solid Bit Optimal Drilling Range in Concrete
1/2 in to 1 3/8 in
Impact Energy
6.1 ft-lb
Standards
CSA Certified

Product Description

The Bosch SDS-max® Combination Hammer is a combo rotary hammer and hammer-only tool designed for concrete contractors and professional remodelers who need a powerful and versatile tool. It delivers 6.1 ft.-Lbs. of impact energy while weighing in at only 15.2 Lbs. The motor is rated at 170 to 340 RPM in rotary mode and 1,200 to 2,750 BPM in hammer mode, which will easily reduce concrete to dust. Its SDS-max® bit system allows tool-free and one-handed bit changes. The Vario-Lock™ mechanism lets users angle the chisel into 12 different positions to optimize the working angle. The hammer has a Dual Mode Selector Knob and service minder brushes, which clearly indicate when preventive maintenance is required.
