Carriage Bolt: Square, Steel, Grade 5, Zinc Plated, 1/4"-20 Thread Size, 5 in lg, Inch, 50 PK

Hover over image to magnify

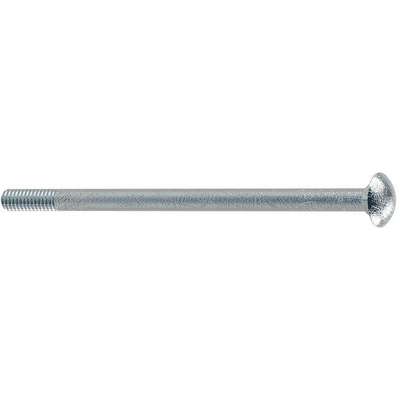

Carriage Bolt,1/4-20 x 5 In L,
PI_Asset_1110305

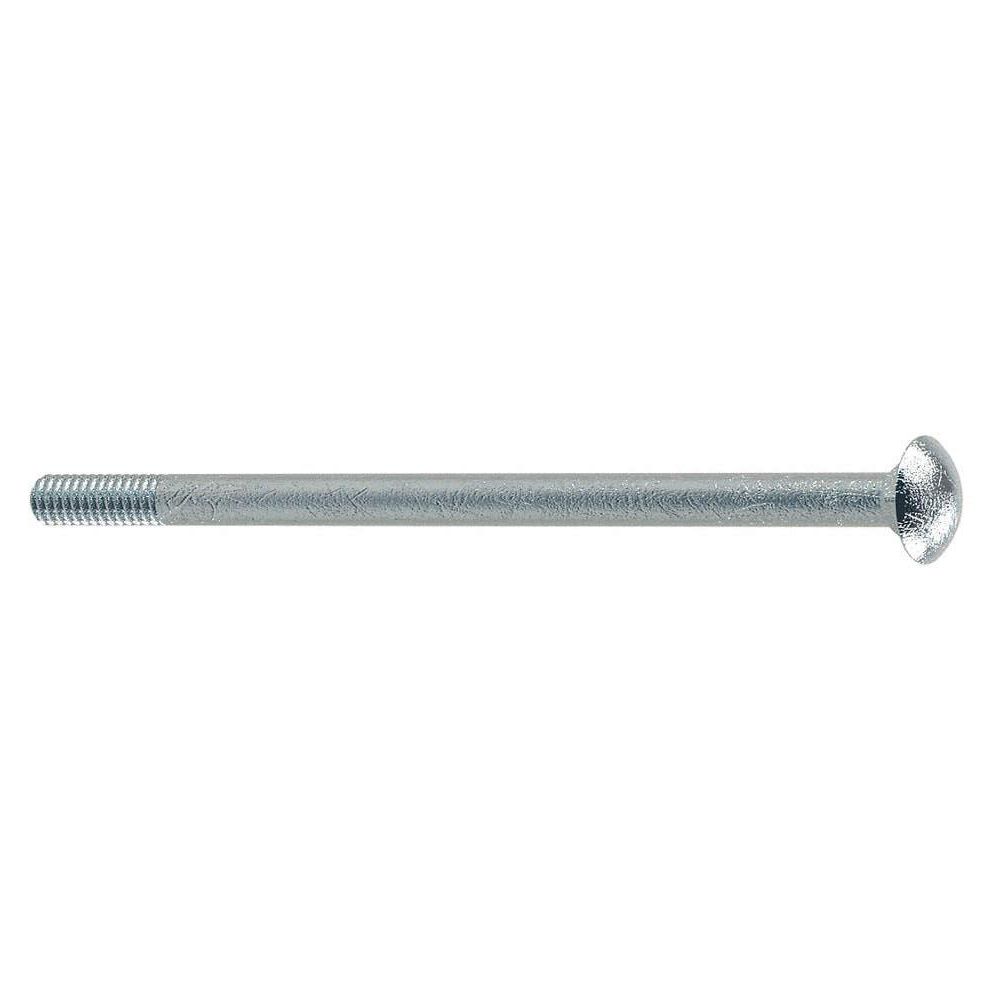

Carriage Bolt,1/4-20 x 5 In L,
PI_Asset_1110305
Double tap image to magnify
Carriage Bolt,1/4-20 x 5 In L,
9165415_2
Carriage Bolt,1/4-20 x 5 In L,
9165415_2

#916541-5Pkg Qty: 50

$33.50 pkg | $0.67 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Basic Material
Steel
Height Range
0.125 in. - 0.145 in.
Brand
APPROVED SUPPLIER
Item
Carriage Bolt
Carriage Bolt Material Grade/Class
Grade 5
Length Under Head
5 in.
Carriage Bolt Square Height
0.125 in. to 0.156 in.
Material
Steel
Carriage Bolt Square Width
0.245 in. to 0.260 in.
Meets/Exceeds
ASME B18.5
Carriage Bolt Thread Style
Partially Threaded
Mfr. Part Number
U08320.025.0500
Drill Size
1/4 in.
Neck Type
Square Neck
Fastener Head Diameter
0.563 in. to 0.594 in.
Package Quantity
50
Fastener Industry Standards
ASME B18.5
Shipping Weight
2.98 lb.
Fastener Thread Direction
Right Hand
System of Measurement
Fractional
Finish
Zinc Plated
Thread Size
1/4"-20
Grade
5
Thread Type
Coarse
Head Type
Round Head
General
Maximum Head Height
9/64 in
Minimum Neck Height
1/8 in
Maximum Neck Height
5/32 in
Minimum Neck Width
1/4 in
Maximum Neck Width
17/64 in
Neck Height
9/64 in
Minimum Head Diameter
9/16 in
Neck Width
1/4 in
Minimum Head Height
1/8 in

Product Description

The square neck on this carriage bolt cuts into wood to prevent turning while the nut is tightened.
