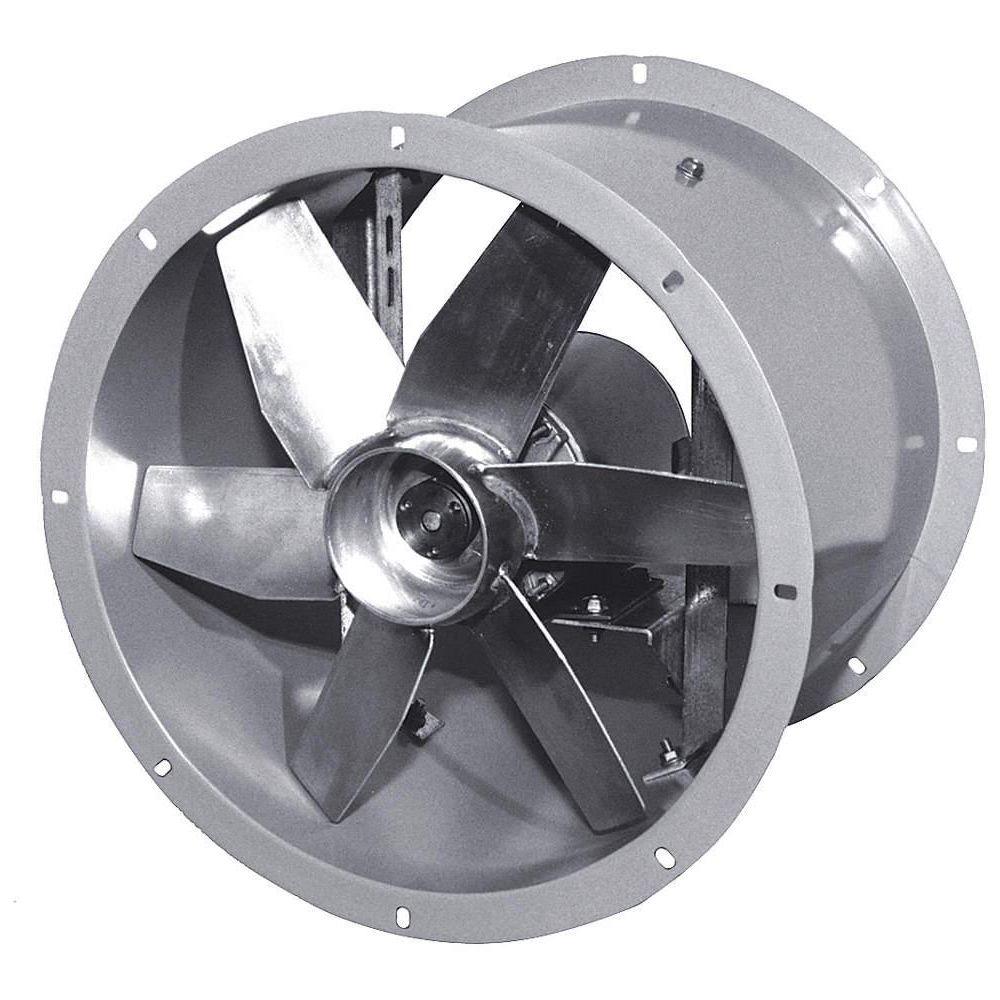

Dayton Tubeaxial Fan: Clean Air, 18 in Blade, 3,938 cfm @ 0.000 in SP, 115V AC, 1 Phase, 1/2 hp

Hover over image to magnify

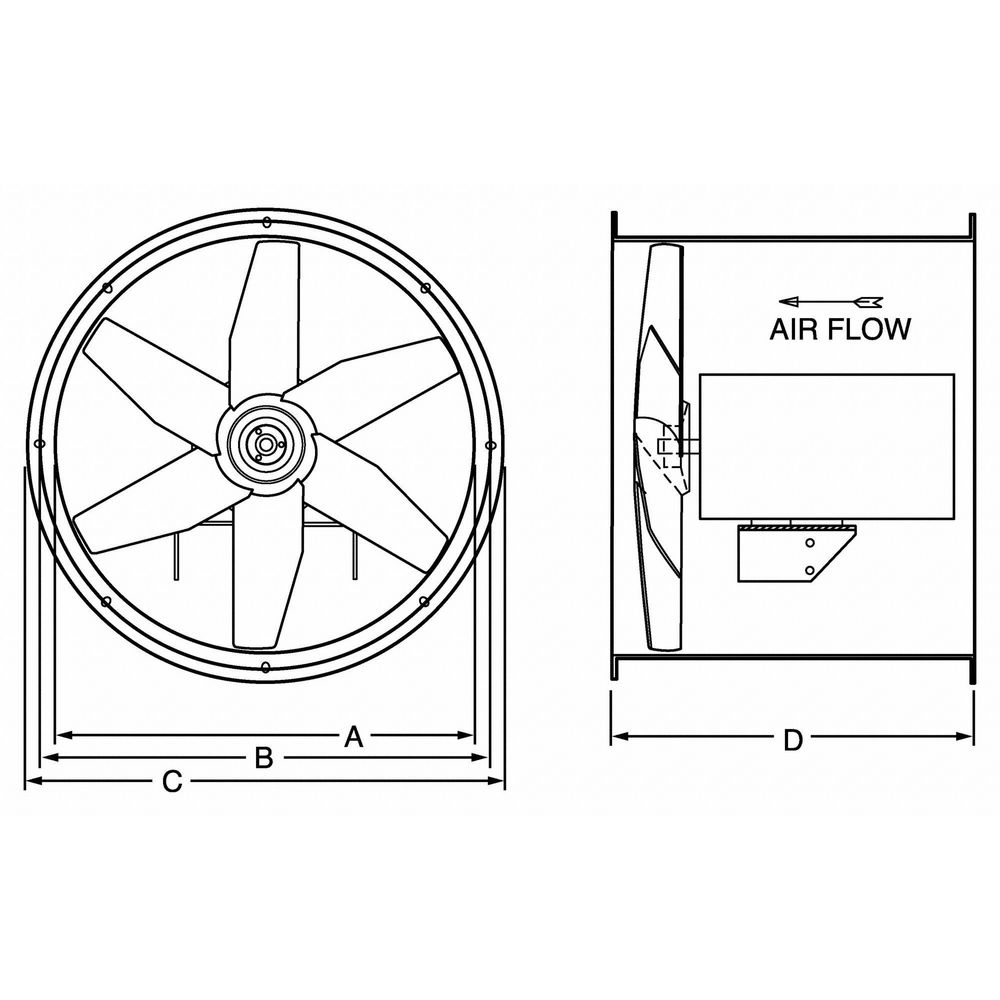

Direct Drive Tubeaxial Fan,18
PI_Asset_965014
Direct Drive Tubeaxial Fan,18
PI_Asset_965014
Double tap image to magnify
Direct Drive Tubeaxial Fan,18
9165160_1
Direct Drive Tubeaxial Fan,18
9165160_1

#916516Pkg Qty: 1

$1,588.61 pkg | $1,588.61 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 15.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Direct-drive tubeaxial fan has precision-balanced aluminum propellers that efficiently move air in medium-length ductwork and operates in any position. The rugged steel housing has a baked enamel finish. Not for use in hazardous locations. Ships assembled. Must be used with 2-speed control No. 1DGZ9.</p>

Direct-drive tubeaxial fan has precision-balanced aluminum propellers that efficiently move air in medium-length ductwork and operates in any position. The rugged steel housing has a baked enamel finish. Not for use in hazardous locations. Ships assembled. Must be used with 2-speed control No. 1DGZ9.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Blade Diameter
18 in.
Mounting Position
Vertical/Horizontal
Brand
DAYTON
Number of Blades
6
Height
21 in.
Package Quantity
1
Item
Tubeaxial Fan
Phase
1
Mfr. Part Number
166003A
Shipping Weight
54 lb.
Motor Enclosure
Totally Enclosed Air Over
Voltage
115
Motor HP
1/2
Width
21 in.
Motor Type
Capacitor Start
General
Airflow @ 0.000 in SP
3,938 cfm
Includes Motor
Yes
Airflow @ 0.000 in SP - Range
0 to 9,999 cfm
Maximum Ambient Temperature
104 Degrees F
Airflow @ 0.000 in. SP - Range
2,000 to 4,999 cfm
Maximum Fan Speed
1,750 RPM
Assembly
Fully Assembled
Maximum Inlet Air Temperature
104 Degrees F
Bolt Circle Diameter
19 7/8 in
Maximum Noise Level @ 5 Feet
25 sones
Brake Horsepower
7/50 hp
Motor Enclosure Design
Totally Enclosed Air-Over (TEAO)
Center Height
10 1/2 in
Nameplate Voltage
115V AC
Compatible Flange Part Number
4C718
Noise Level
25/20 sones@ 0.250 in SP and 5 ft
Current
6.7/4.6 A
Nominal Voltage
115V AC
Exhaust Airflow @ 0.000 in SP
3,938 cfm
Standards
AMCA Certified
Exhaust Airflow @ 0.125 in SP
3,724 cfm
Supply Airflow @ 0.000 in SP
3,938 cfm
Exhaust Airflow @ 0.250 in SP
3,521 cfm
Supply Airflow @ 0.125 in SP
3,724 cfm
Exhaust Airflow @ 0.375 in SP
3,323 cfm
Supply Airflow @ 0.250 in SP
3,521 cfm
Exhaust Airflow @ 0.500 in SP
3,058 cfm
Supply Airflow @ 0.375 in SP
3,323 cfm
For Air Type
Clean Air
Supply Airflow @ 0.500 in SP
3,058 cfm
Includes Drive Package
Yes

Product Description

Direct-drive tubeaxial fan has precision-balanced aluminum propellers that efficiently move air in medium-length ductwork and operates in any position. The rugged steel housing has a baked enamel finish. Not for use in hazardous locations. Ships assembled. Must be used with 2-speed control No. 1DGZ9.

Documents

Dayton Tubeaxial Accessories Fact Sheet
