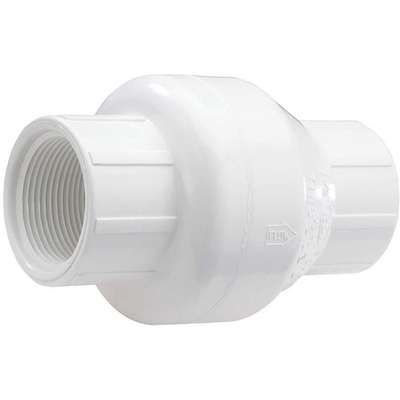

Swing Check Valve: Single Flow, Inline Swing, PVC, 2 in Pipe/Tube Size, FNPT x FNPT, EPDM, PVC
Hover over image to magnify
#916473 | Pkg Qty: 1
$20.43 pkg | $20.43 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
NDS
Mfr. Part Number
1520-20F
Connection Type
FNPT
Mounting Position
Vertical or Horizontal
Item
Swing Check Valve
Overall Height
4-19/64 in.
Length
6-3/16 in.
Package Quantity
1
Material
PVC
Shipping Weight
1.06 lb.
Maximum Temperature
140 deg. F
Width
4-19/64 in.
General
Application - Valves
General Purpose
Max. Water Pressure - Valves
150 psi @ 70 Degrees F
Body Material - Valves
PVC
Mechanism and Body Design
Inline Swing
Flow - Valves
78.44 gpm
Min. Temp. - Valves
14 Degrees F
Flow Design
Single
Mounting Orientation
Horizontal, Vertical
Full Flow - Valves
Yes
Pipe or Tube Size
2 in
Max. Temp. - Valves
140 Degrees F
Standards
NSF 61
Product Description
PVC Swing Check Valves
- Max. pressure: 150 psi at 73°F Max. temp.: 140°F Cracking pressure: 0.25 psi
- Full-flow design reduces pressure loss. Horizontal or vertical mount. For cold water handling in irrigation, well, sump, and water removal applications.
- Meet NSF 61 standards.
Item Barcode
Swing Check Valve,PVC,2 In.,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4GTW3 | Swing Check Valve,PVC,2 |
 | UNSPSC CODES | 40141634 | |
 | VMRS (ATA) CODES | 053-006-009 | Swing Check Valve,PVC,2 |
