MARS AIR DOORS

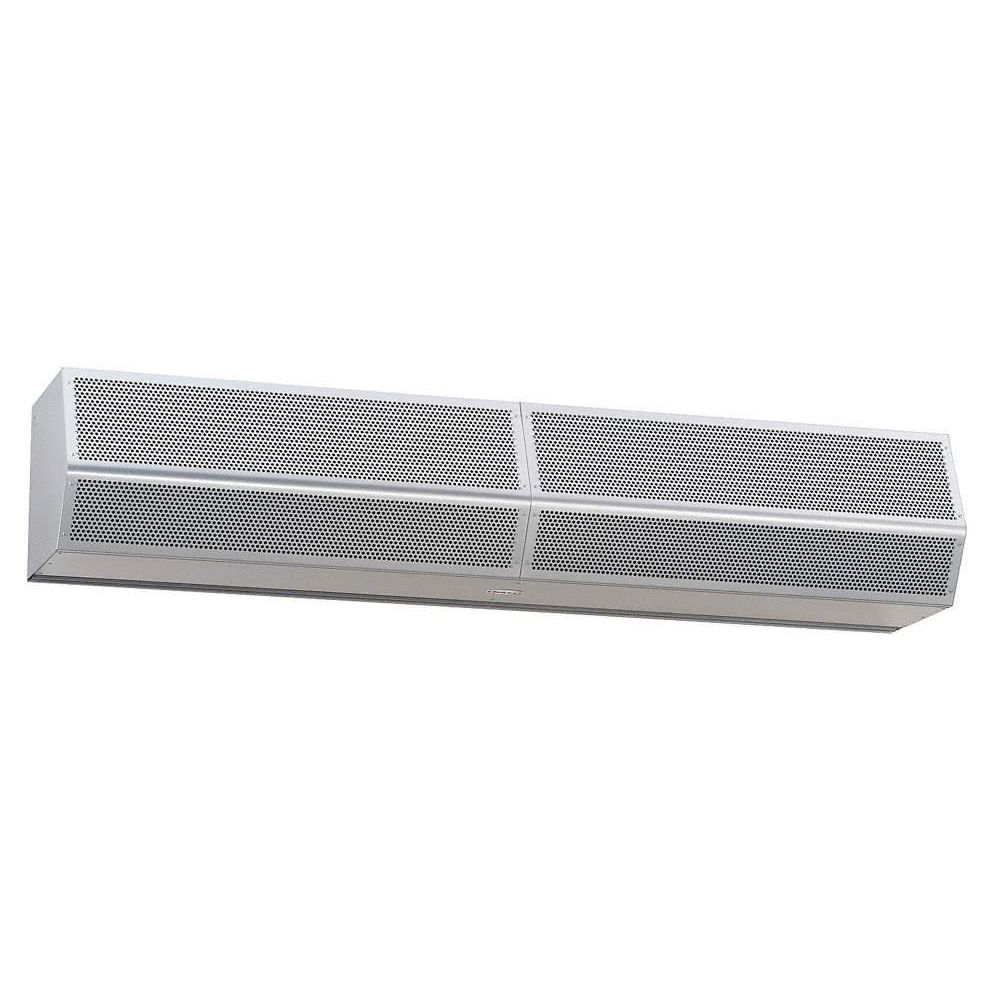

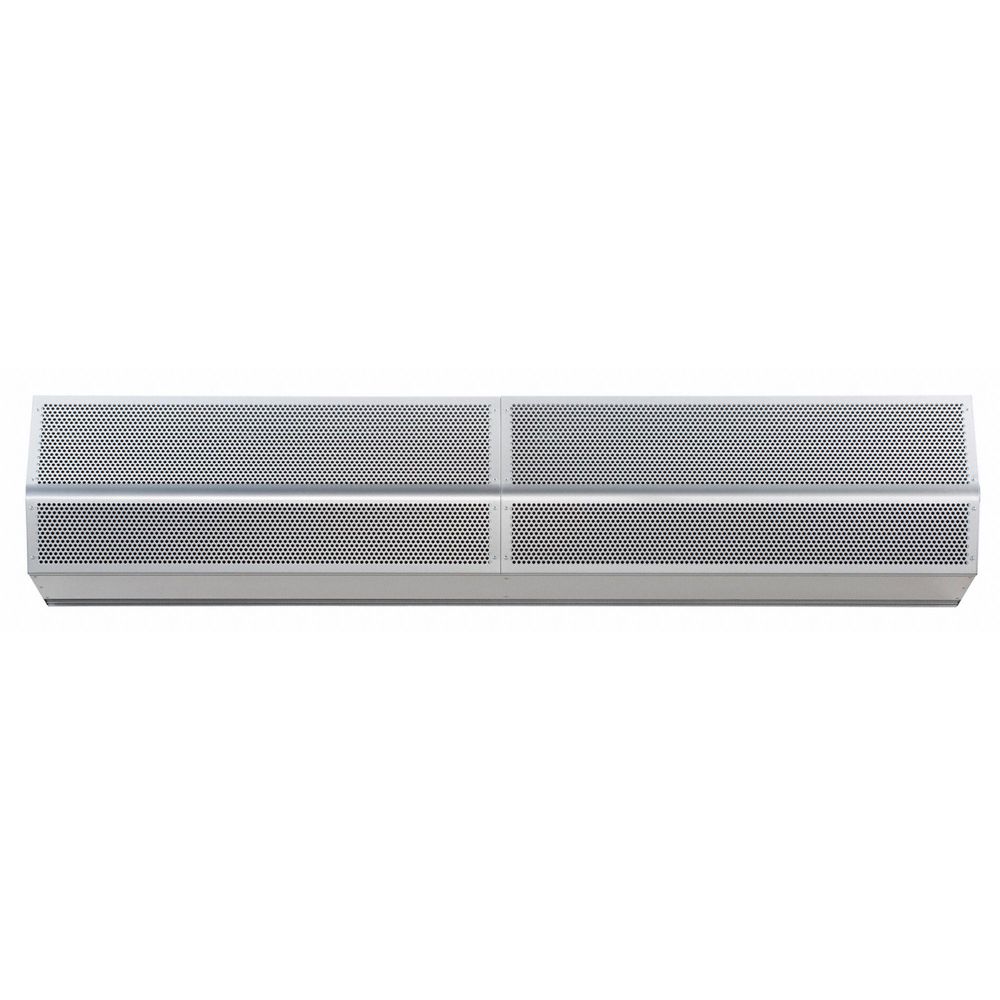

Mars Air Doors Air Curtain, 10 ft. Max. Door Width, 12 ft. Max. Mount Ht., 75 dBA @ 10 Feet, 4800 fpm
Hover over image to magnify
#916395-9 | Pkg Qty: 1
$4,877.87 pkg | $4,877.87 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Volume
6693 cfm
Motor HP
1
Brand
MARS AIR DOORS
Motor Type
3 Phase
Depth
15-5/8 in.
Package Quantity
1
Heated
No
Phase
3
Height
14 in.
Shipping Weight
411 lb.
Item
Air Curtain
Voltage
460
Mfr. Part Number
HV2120-3UH-TS
Width
120 in.
General
Air Curtain Air Velocity
4800 fpm
Max. Amps
4.8
Air Curtain Air Volume
6693 cfm
Max. Mounting Height
12 ft
Air Curtain Finish
Galvanized
Max. RPM
1,750 RPM
Air Curtain Housing Material
Steel
Number of Motors
3
Air Curtain Max. Door Width
10 ft
Standards
ETL
Air Curtain dBA @ 10 Feet
75 dBA
Product Description
This 3-phase multipurpose air curtain helps cut your utility bills while also keeping the environment clean. It deters dust, flying insects, and pollutants. It is designed with a rugged construction and is easy to install. Provides consistent performance, maintains consistent temperatures, and reduces loss of conditioned air. Hardwired.
Expertly Selected Product Pairings
Documents
Item Barcode
Air Curtain,Multipurpose,120 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 32V318 | Air Curtain, Multipurpose, |
 | UNSPSC CODES | 27131605 | |
 | VMRS (ATA) CODES | 053-006-009 | Air Curtain, Multipurpose, |
