SOLA/HEVI-DUTY

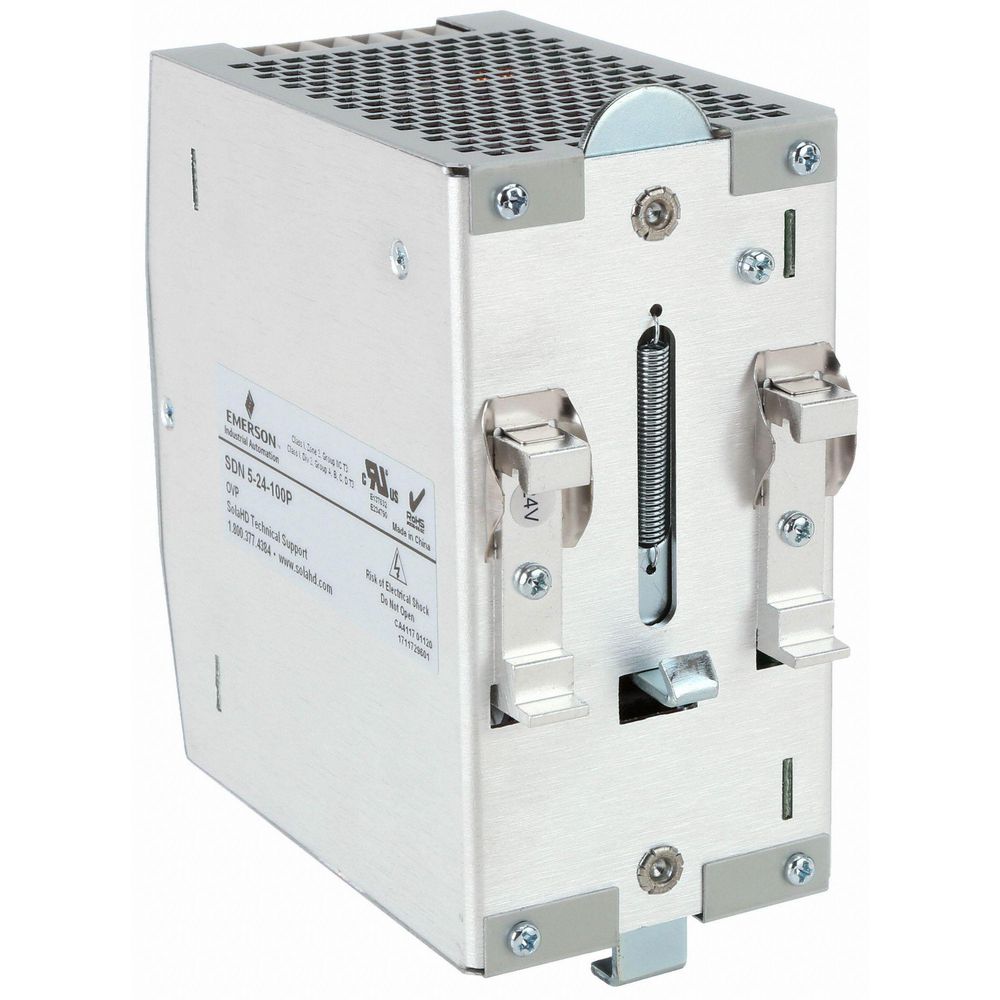

Sola/Hevi-Duty DC Power Supply, Style: Switching, Mounting: DIN Rail/Chassis

Hover over image to magnify
Dc Power Supply,24VDC,5A,47-
PI_Asset_1354204
Dc Power Supply,24VDC,5A,47-
PI_Asset_1354204
Double tap image to magnify
Dc Power Supply,24VDC,5A,47-
3WY64_1
Dc Power Supply,24VDC,5A,47-
3WY64_1

#916332-6Pkg Qty: 1

$516.49 pkg | $516.49 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Amperage
5 A
Operating Temperature Range
-1 deg. C to 6 deg. C
Brand
SOLA/HEVI-DUTY
Output Amps
5
Case Material
Metal Case
Output Noise
Less Than 50mV
Depth
4.55 in.
Output Voltage
24 VDC
Height
4.88 in.
Package Quantity
1
Hold Up Time
Greater Than 100 msec
Phase
1
Hz
47 to 63
Power Rating
120 W
IP Rating
20
Series
Sdn
Input Voltage
115 to 230 VAC
Shipping Weight
2.3 lb.
Item
DC Power Supply
Status Indicator
Green LED
Mfr. Part Number
SDN524100P
Style
Switching
Mounting
DIN Rail/Chassis
Voltage Output
24V
NEMA Rating
1
Width
2.56 in.
General
Features
Power Factor Correction, Improved Metal Mounting Clip, Adjustable Voltage, Parallel Capability Standard On All Units, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, User-Friendly Front Panel
Phase - Electrical
Single
Operating Temp. Range
-10° to 60°C
Standards
cUL us E61379, cRUus E137632 E234790, CE

Product Description

SDN Series DC Power Supplies (DIN Mounted)

  • Class 1 Div. 2 Hazardous Locations Can be connected in parallel 24VDC output models are adjustable from 22.5 to 28VDC Feature narrow width on DIN rail for space-critical applications, rugged metal case, and DIN connector. Large, sturdy, multiple-point screw terminations for quick connection. High-efficiency 88%, switching power supply. Extra boost capacity for high inrush loads without foldback or shutdown. Auto-select voltage input. For industrial control and process control applications including DC input solenoids, valves, switches (prox switches), relays, PLCs, and sensors. UL and C-UL Listed, CSA and CE Certified. Meet SEMI F47 SAG Immunity.
