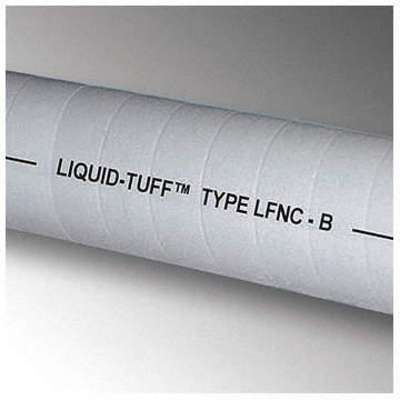

6000-Series Flexible Nonmetallic Liquid Tight Conduit, 3/8" x 50 ft., 2" Bend, Gray

Hover over image to magnify
Liquid-Tight Conduit,3/8 In x
Liquid-Tight Conduit,3/8 In x

#916245-5 | Pkg Qty: 1

$44.52 pkg | $44.52 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
2 in.
Jacket Color
Gray
Brand
APPROVED SUPPLIER
Jacket Material
Flame Retardant PVC
Color Family
Gray
Length
50 ft.
Conduit Size
3/8 in.
Liquid Tight Conduit Application
Nonmetallic, General Purpose
Conduit Trade Size
3/8 in.
Material
PVC
Core Material
Rigid PVC Encapsulated Within Flexible PVC
Mfr. Part Number
6001-24-00
Flammability Rating
UL 1660
Nominal Length
50 ft.
Flexible Conduit Bend Radius
2 in.
Outside Diameter
0.69 in.
Flexible Conduit Color
Gray
Pack Quantity
1
Flexible Conduit Core Material
Rigid PVC
Series
6000
Flexible Conduit Nominal Length
50 ft.
Shipping Weight
5.6 lb.
Flexible Conduit Usable Temperature Range
-2 deg. F to 176 deg. F
Standards
UL 1660 & CSA 22.2 No. 227.2 Type B, Conforms to The Requirements Of Section 14.5.5 Of The Electrical Standard For Industrial Machinery NFPA-79, RoHS and WEEE Compliant
Indoor/Outdoor Usage
Outdoor Only
Temperature Range
-2 deg. F to 176 deg. F
Inside Diameter
0.484 in.
Trade Size
3/8 in.
Item
Flexible Nonmetallic Liquid Tight Conduit
General
Approval Rating
CSA, NFPA, UL
Special Features
UL & CSA listed -Type B Construction
Flexibility
Flexible
Special Properties
Oil Resistant
Jacketed
Yes
Wet Location
Yes
Resistance Properties
Oil Resistant, UV Resistant

Product Description

Liquidtight, flexible, nonmetallic conduit/raceway is for use in various applications per the NEC. Suitable for wet locations and for direct burial as well as concrete embedment. Constructed from rugged PVC to provide impact and crush protection for electrical power, control, and communication cables. Flame retardant and resistant to oil and sunlight. May be used with metallic or nonmetallic, liquidtight fittings. UL listed.

Expertly Selected Product Pairings

Straight Connector,3/8 In,Non
$5.59 pkg | $5.59 ea
Item: 912095-8 | Pkg Qty: 1
90 Deg Connector,3/8 In,Non
$6.99 pkg | $6.99 ea
Item: 912212-4 | Pkg Qty: 1
Insulated Connector,3/8 In.,
$9.44 pkg | $9.44 ea
Item: 919600-5 | Pkg Qty: 1
Liquid Tight Connector,3/8 In.,
$3.25 pkg | $3.25 ea
Item: 920151-7 | Pkg Qty: 1
Insulated Connector,3/8 In.,
$6.53 pkg | $6.53 ea
Item: 928153-1 | Pkg Qty: 1
Enhanced Rating Fitting,3/8",
$9.59 pkg | $9.59 ea
Item: 929681-3 | Pkg Qty: 1

Documents

Liquid-Tuff 600 Flexible Liquidtight Conduit Specification Sheet
