ROMEX

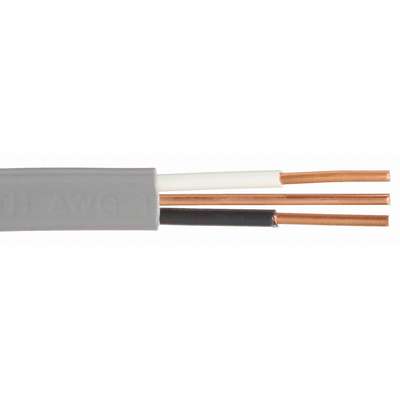

Romex 250 ft. Solid Nonmetallic Building Cable; Conductors: 2 with Ground, 14 AWG Wire Size, Gray

Hover over image to magnify
Nonmetallic Cable,14/2  Awg,
PI_Asset_1354577
Nonmetallic Cable,14/2  Awg,
PI_Asset_1354577

#916235-9 | Pkg Qty: 1

$200.53 pkg | $200.53 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ROMEX
Nominal Outside Diameter
0.423 in. x 0.168 in.
Cable Type
UF-B
Number of Conductors
2 with Ground
Cable/Wire Type
UF-B
Package Quantity
1
Color Family
Gray
Packaging
Coil
Conductor Material
THHN
Shipping Weight
16.03 lb.
Description/Special Features
Outdoor Use
Spool Length
250 ft.
Gauge/Conductor
14/2 with Ground
Stranded / Solid
Solid
Indoor/Outdoor
Outdoor
Stranding
1
Insulation Material
PVC
Temperature Rating
194F
Item
Nonmetallic Building Cable
Type
Nonmetallic
Jacket Color
Gray
Voltage
600 V
Jacket Material
PVC
Wire Color
Bare, Black, White
Jacket Type
PVC
Wire Size
14 AWG
Length
250 ft.
Wire and Cable Item
Nonmetallic Building Cable
Maximum Amps
15
Wire/Cable Jacket Material
PVC
Maximum Voltage
600 V
Wire/Cable Size
14 AWG
Mfr. Part Number
13054255
General
Application
Outdoor Use
Jacket Material - Wire and Cable
PVC
Cable Type - Wire and Cable
UF-B
Standards
UL/NEC
Conductor Design
Solid
Trade Designation
UF-B
Features
Outdoor Use
Wire Size - Wire and Cable
14 AWG

Product Description

UF-B underground feeder cable is electrical wire that can be buried directly in the ground, with or without conduit. It is typically used as a feeder or branch circuit cable to extend electrical service underground from a main building to a secondary facility. It has a durable nylon jacket that resists abrasion, moisture, and corrosion. UF-B is commonly used in residential and agricultural settings to supply electricity to pumps, garages, sheds, barns, and other outbuildings. It can also be used in wet indoor settings because it resists moisture and fungus.
